Acer Aspire E5-721-64T8 Touch Pad Replacement

Geschrieben von: Ed Herrera
  • Kommentare: 0
Acer Aspire E5-721-64T8 Touch Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten

Einleitung

If your touch pad is not working and you have tried other troubleshooting options, it may need to be replaced. This guide will teach you how to replace the touch pad for this laptop. Be sure to fallow all of them steps in order. Make sure there is no AC power connected to the device before starting.

  1. aSISJWTXYHUPIQaj

    • Remove the twenty-five 6mm Phillips #0 screws from the bottom panel of the laptop.

  2. TLPggKOsgkRkFAkh

    • Using the plastic opening tool, lift up on the side opposite of the Ethernet connector.

    • With the plastic opening tool under the bottom panel, work your way around the perimeter until the panel separates.

  3. q5l1TU41ZREAhyLp

    • Remove the two 6mm Phillips #0 screws from the battery.

  4. OLYCQ4ZXoeAqGAcB
    OLYCQ4ZXoeAqGAcB
    nd2N36WLHD1REic3

    • Disconnect the battery from the motherboard.

    • Pull the battery up and out of the laptop.

  5. rpCJ5THp2dr1RQeD
    rpCJ5THp2dr1RQeD
    lmiGTCbFBftOnYmE

    • Remove the two 6mm Phillips #0 screws from the fan.

    • Disconnect the fan from the motherboard.

    • Remove the four 6mm Phillips #0 screws from the heat sink.

    • Lift and remove the heatsink assembly from laptop.

  6. MeppQK6VPQiZiWQA

    • Remove the Wi-Fi card by pulling it from the motherboard socket.

  7. pFCkJby5UuBBTQpL

    • Disconnect the display cable from the motherboard.

  8. E5tF1C6FMkFyXSRo

    • Disconnect the speaker from the motherboard.

  9. ChPLIdNSRaep2Sps
    ChPLIdNSRaep2Sps
    SSo1xGEoW5T2Fw4D

    • Use a spudger to flip up the retaining flaps on the ribbon cable ZIF sockets.

  10. FidIlrB1xpOxfalb
    FidIlrB1xpOxfalb
    avBLY6QLbGPXivif

    • Use a spudger to flip up the retaining flap on the black ribbon cable ZIF socket.

  11. UBYREd3PMINop5mv

    • Lift the motherboard up from the narrow side and jiggle slightly so that way it doesn't get caught on the ports of the laptop case.

  12. IJtidkudTQIxMZZV

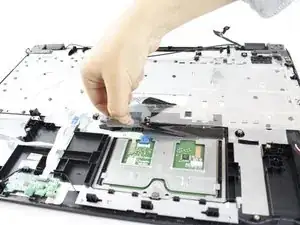

    • Peel the black adhesive film up.

  13. TliwsHQlVxPPZqZV

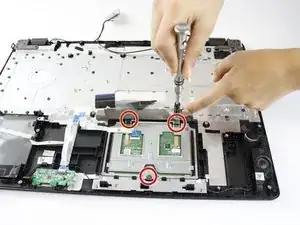

    • Remove the three 6mm Phillips #0 screws from touchpad.

  14. gdlbZfcCwDkL3sdV

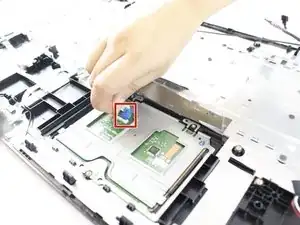

    • Use a spudger to flip up the retaining flap on the touchpad ribbon cable ZIF socket.

    • Remove the ribbon cable from the ZIF socket.

  15. XvW6mvU4VDJuUrWI
    XvW6mvU4VDJuUrWI
    4iTgEBetgTWd1GhI

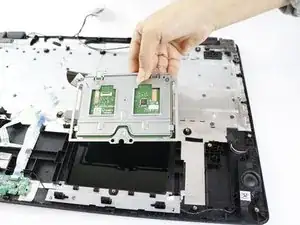

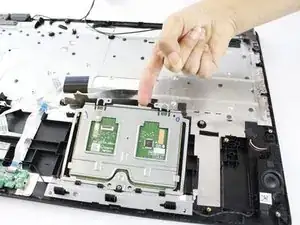

    • Lift the touchpad up by the side closest to the middle of the laptop and pull up towards you to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
