Einleitung

  1. njmsNRepA4bblaTU
    njmsNRepA4bblaTU
    XApSYNr5ZohtQUx2
    TpIdk3yvETgQYMkA

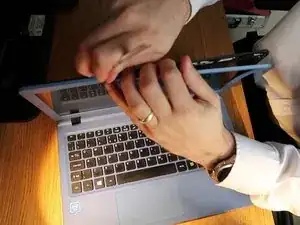

    • Grab a spudger and work your way around the outer edge of the screen

    • Lean the screen all the way back to remove the plastic frame from the hinges at the bottom

  2. OlYsgArPNlEbg2r1
    OlYsgArPNlEbg2r1
    nqLaljBLChsuAvEs
    • Unscrew the 4 screws around the edge of the screen

    • Lean the screen all the way forward on to the keyboard

  3. pk3c6GuWXmtqVeBE
    pk3c6GuWXmtqVeBE
    N1nfxfCmMZnHPbbm

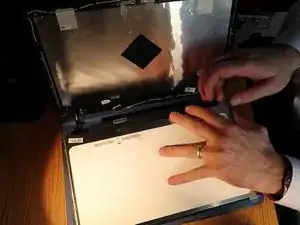

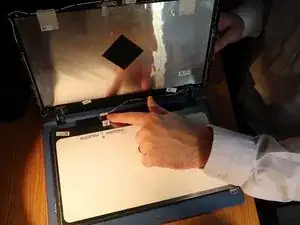

    • Peal up the sticky tape next to the screen connector

    • Pull the connector down carefully away from the screen and disconnect it

  4. FWfsuAxSYItvMSvi
    FWfsuAxSYItvMSvi
    NyltHKINTuWeERex
    nZUMVNJXcu6hDD4U

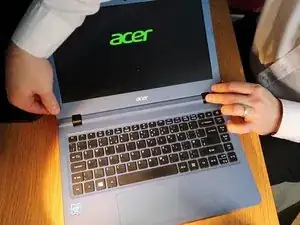

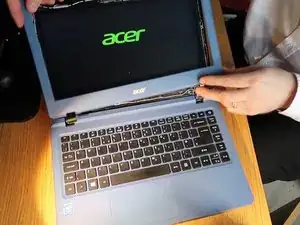

    • connect the new screen and screw back in place

    • Turn on the screen to test before putting the screen frame back on

    • Tilt the screen all the way back and push the frame back on hinges 1st.

    • Finally lean the laptop on its edge and clip the back on the hinges back in place.
