Einleitung
You may need to replace the battery in your Acer Aspire ES1-512-C80E if you experience problems regarding the device’s power. To access the battery, the back cover of the device will need to be removed. The process of replacing the battery should take between 10-20 minutes.
Werkzeuge
Ersatzteile
-
-
Place the device upside down on a flat surface.
-
Using a Phillips #00 screwdriver, remove all nineteen 1.2mm screws that secure the bottom cover of the device.
-
-
-

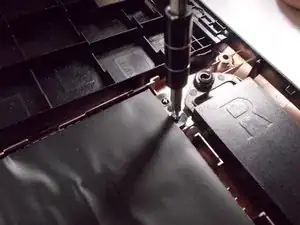

Using a Phillips #00 screwdriver, remove the four 1.2mm screws from the keyboard.
-

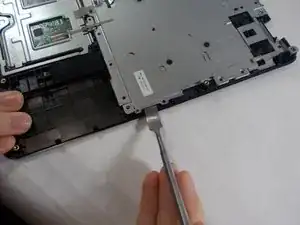

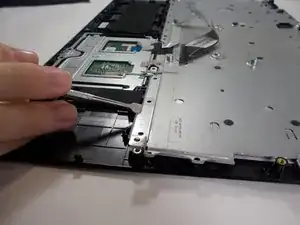

Using a spudger, go around the edges and pry off the keyboard.
-
-
-

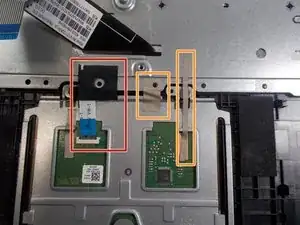

Remove the ribbon cable connection from the keyboard.
-
Peel back the two pieces of tape to separate the keyboard.
-

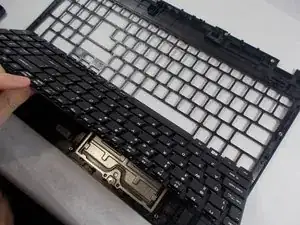

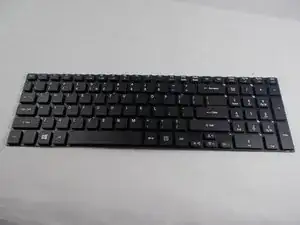

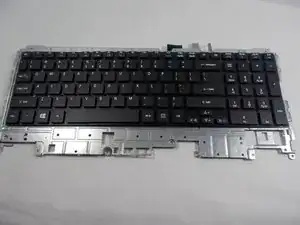

Remove the keyboard from under the plastic covering.
-

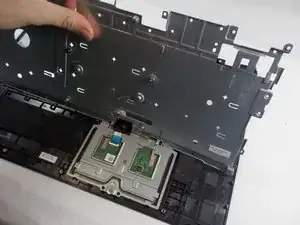

Remove the silver plate back cover of the keyboard from the bottom base.
-
-
-

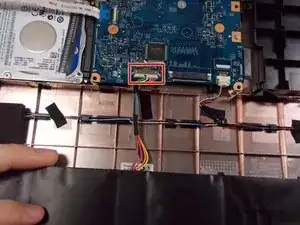

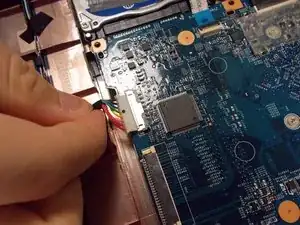

Remove the wired connection to the laptop by pulling the plug out of the motherboard.
-

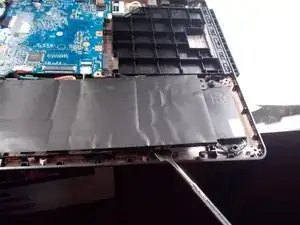

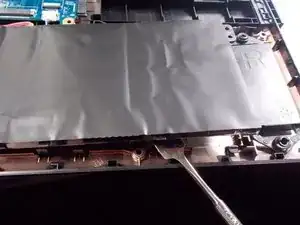

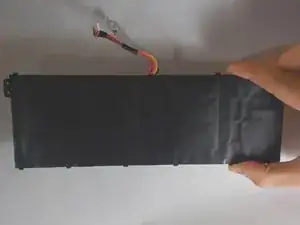

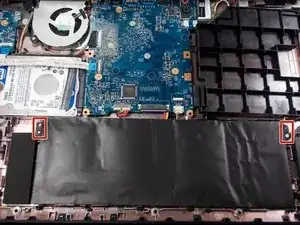

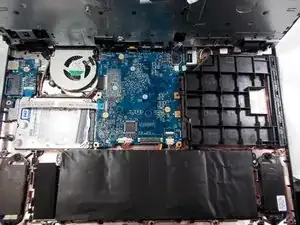

Remove the battery from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
