Acer Aspire ES1-512-C80E Hard Drive Replacement

Geschrieben von: Robert Creighton
  • Kommentare: 6
Acer Aspire ES1-512-C80E Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

You may need to replace the hard drive in your Acer Aspire ES1-512-C80E if you experience problems regarding the device’s storage. To do this, you will need Phillip’s #00/#000 screwdrivers, and a spudger. Additionally, you will need a replacement hard drive. To access the hard drive, the back cover of the device will need to be removed. The process of replacing the battery should take between 15-25 minutes.

  1. eaeT42qSv5odTXHh

    • Place the device upside down on a flat surface.

    • Using a Phillips #00 screwdriver, remove all nineteen 1.2mm screws that secure the bottom cover of the device.

  2. ghIKAJIiFRCbKDmL
    ghIKAJIiFRCbKDmL
    OgIIq15nNajrPcnm
    aDtWRhGpKPcDcciv

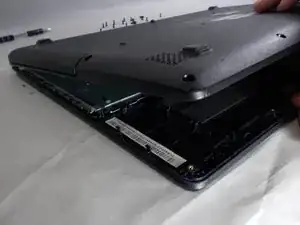

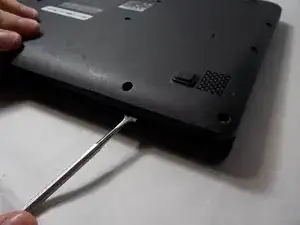

    • Pry around the edges with a spudger to remove the back cover.

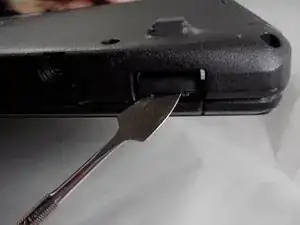

    • The two hinges on the back require additional force to be popped open.

  3. wxgNuuGd3HswnsmV
    wxgNuuGd3HswnsmV
    S4LRIAitgo6iHmnw
    BxxmeKIwKMeYX3HK

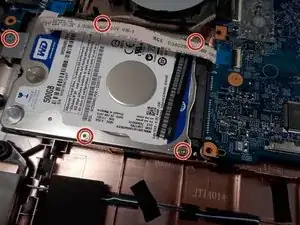

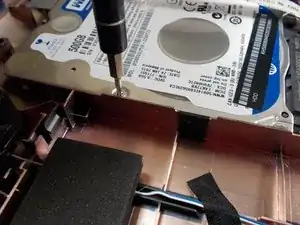

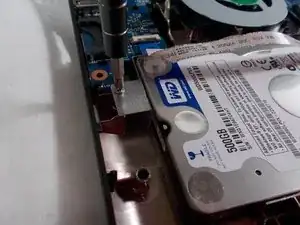

    • Using a Phillips #000 screwdriver, remove the five 1.2mm screws that hold the hard drive in place.

    • Attention Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Zelik Cosio-Altamirano -

    Do not remove the screws on the hard drive - or you will jeopardize the drive dust seal.

    John Ross -

  4. MfvsXgoPOyVAQq12
    MfvsXgoPOyVAQq12
    1cMBb4PmDNRBaRFS
    EEZiJKYoVtlQTiDD

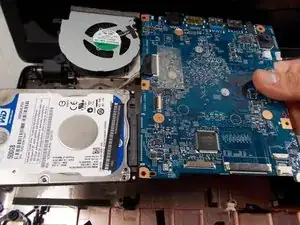

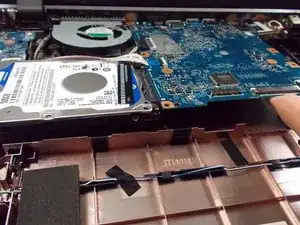

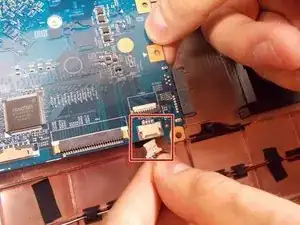

    • Lift the hard drive, fan, motherboard, and wireless LAN card out of the device.

    • These components are still connected with wires. Remove all plugs that may be attached to other components in order to isolate the group of components.

    The CD drive may still be connected prior to lifting out of the case. The CD drive will slide away from the motherboard and be removed from the opening on the case.

    Zelik Cosio-Altamirano -

    Step 4 (and five) is totally unneccesary - just losen the single screw holding the bracket and slide the drive to the left. No need what so ever to losen the motherboard….

    John Ross -

  5. SWQp2bZMVeLNh1L1
    SWQp2bZMVeLNh1L1
    UOfQGRRMH2lp2OI4

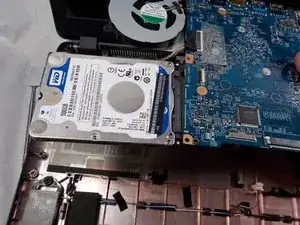

    • Once the four components are out of the device, the hard drive is ready to be removed.

    • To remove the hard drive, unplug it from the motherboard.

    • Attention The hard drive does not lift out of the computer CONNECTED to the motherboard. It can damage connection of hard drive on motherboard. Once the Screw on the opposite end of the port is removed, the Hard Drive should slide away from the Motherboard and lift out with ease.

    Attention The hard drive does not lift out of the computer CONNECTED to the motherboard. It can damage connection of hard drive on motherboard.

    In step 8, Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Zelik Cosio-Altamirano -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Robert Creighton

Mitglied seit: 31/10/19

679 Reputation

Ein Kommentar

Not the best instructions, YouTube worked better for this laptop.

This wasn’t that difficult for me, you of course don’t need to replace the keyboard, or take out the motherboard.

After unscrewing the base and prying open the case, the keyboard side can be lifted out (Two cables need to disconnected). After unscrewing the 1 screw at the back of the HDD, I was able to slide it slowly out.

After removing the bracket from the HDD to my new SSD I slid the new drive in, screwed the bracket back down and closed up.

This should be a 4 step guide and down as moderate

Alex Culff -
