You may need to replace the RAM on your Acer Aspire ES1-512-C80E if you experience problems regarding the device’s power. To do this, you will need Phillip’s #00/#000 screwdrivers, and a spudger. Additionally, you will need a replacement RAM. To access the RAM, the back cover of the device will need to be removed. The process of replacing the RAM should take between 10-20 minutes.

  1. eaeT42qSv5odTXHh
    • Place the device upside down on a flat surface.

    • Using a Phillips #00 screwdriver, remove all nineteen 1.2mm screws that secure the bottom cover of the device.

  2. ghIKAJIiFRCbKDmL
    ghIKAJIiFRCbKDmL
    OgIIq15nNajrPcnm
    aDtWRhGpKPcDcciv
    • Pry around the edges with a spudger to remove the back cover.

    • The two hinges on the back require additional force to be popped open.

  3. PQNQklrLTI3qLbEB
    PQNQklrLTI3qLbEB
    QTHrEVcB4LRSCDf4
    Y2vcIoDdLQkUpMPB
    • The keyboard is the silver piece located by itself on the upper half of the laptop.

    • Using a Phillips #00 screwdriver, remove the four 1.2mm screws from the keyboard.

    • Using a spudger, go around the edges and pry off the keyboard.

    • All black clips will have to be removed before the keyboard can be removed.

  4. lCEZ4g5uptoXiNoJ
    lCEZ4g5uptoXiNoJ
    MEqRMF4dqPrFdvlJ
    TKdkhWrORMiSrBLe
    • Remove the ribbon cable connection from the keyboard.

    • Peel back the two pieces of tape to separate the keyboard.

    • Remove the keyboard from under the plastic covering.

    • Remove the silver plate back cover of the keyboard from the bottom base.

  5. ElA3fTWPtWgxMTWR
    ElA3fTWPtWgxMTWR
    vslKLh1gCG6WOHTD
    • Remove the large silver plate from the keyboard.

    • You can not remove the silver backing with the attached wire from the back of the keyboard.

  6. bWChV1U6nGctrTn2
    • The keyboard is removed and ready to be replaced.

  7. wxgNuuGd3HswnsmV
    wxgNuuGd3HswnsmV
    S4LRIAitgo6iHmnw
    BxxmeKIwKMeYX3HK
    • Using a Phillips #000 screwdriver, remove the five 1.2mm screws that hold the hard drive in place.

    • Attention Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Zelik Cosio-Altamirano -

    Do not remove the screws on the hard drive - or you will jeopardize the drive dust seal.

    John Ross -

  8. MfvsXgoPOyVAQq12
    MfvsXgoPOyVAQq12
    1cMBb4PmDNRBaRFS
    EEZiJKYoVtlQTiDD
    • Lift the hard drive, fan, motherboard, and wireless LAN card out of the device.

    • These components are still connected with wires. Remove all plugs that may be attached to other components in order to isolate the group of components.

    The CD drive may still be connected prior to lifting out of the case. The CD drive will slide away from the motherboard and be removed from the opening on the case.

    Zelik Cosio-Altamirano -

    Step 4 (and five) is totally unneccesary - just losen the single screw holding the bracket and slide the drive to the left. No need what so ever to losen the motherboard….

    John Ross -

  9. SWQp2bZMVeLNh1L1
    SWQp2bZMVeLNh1L1
    UOfQGRRMH2lp2OI4
    • Once the four components are out of the device, the hard drive is ready to be removed.

    • To remove the hard drive, unplug it from the motherboard.

    • Attention The hard drive does not lift out of the computer CONNECTED to the motherboard. It can damage connection of hard drive on motherboard. Once the Screw on the opposite end of the port is removed, the Hard Drive should slide away from the Motherboard and lift out with ease.

    Attention The hard drive does not lift out of the computer CONNECTED to the motherboard. It can damage connection of hard drive on motherboard.

    In step 8, Only the screw on the opposite end of the port of the hard drive needs to be removed. Then the hard drive will slide away from the Motherboard while still in the plastic case. Once slid out all the way, it lifts out separately with ease.

    Zelik Cosio-Altamirano -

  10. 2IiAtgwk2MTBasp3
    2IiAtgwk2MTBasp3
    aNSgqvJRVap3KOCq
    3BNV4QdSoB6XYjeE

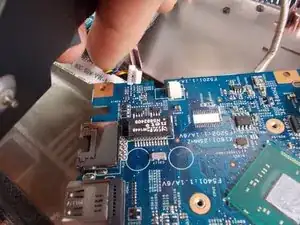

    • Flip over the motherboard.

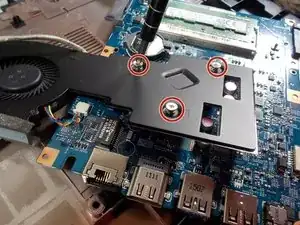

    • Remove all three 1.2mm screws that attach the fan to the motherboard using a Phillips #00 screwdriver.

    • Lift the fan off of the motherboard.

    • The fan and the motherboard are still connected with wires. Remove any plugs that may be attaching the components.

  11. GFykuS5U6MVM2IgG
    GFykuS5U6MVM2IgG
    PqASHcspLuJhQJaW

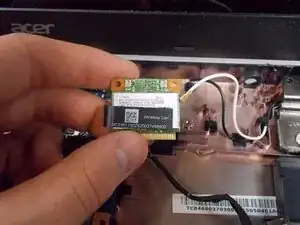

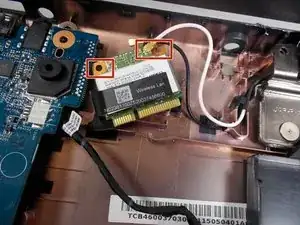

    • Remove the wireless LAN card from the motherboard by unplugging the connecting wires.

  12. tUPUwowQqtrNKlYk
    tUPUwowQqtrNKlYk
    FPEBjYg2QAhVw6GR
    OeHHTZHjAwIhJQGs

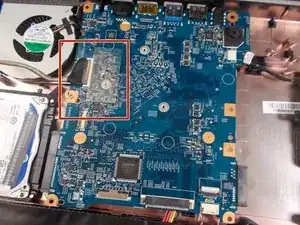

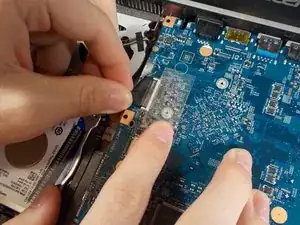

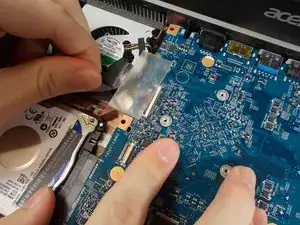

    • Gently remove the tape and plug from the motherboard.

  13. RdQvShZPsJbhZZPI
    RdQvShZPsJbhZZPI
    mSHwAIqSVGKJESCf
    R3YaWHkEoX62CJWd

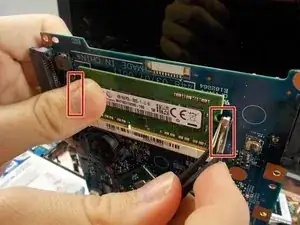

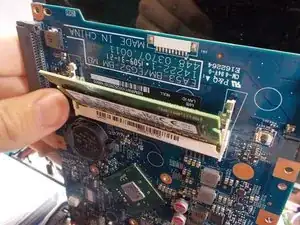

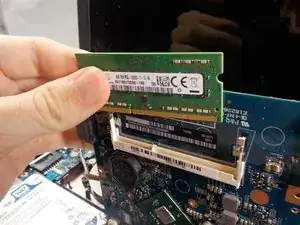

    • In order to remove the RAM, push both of the clips outward and the RAM chip will easily slide up and out.

  14. NePACRLlNsZXbnDK

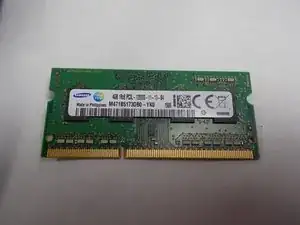

    • The RAM is removed and ready to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
