Hard drives are a common failure point on a PC. Signs that you might need to replace your HDD can include, running out of storage capacity, a very slow PC, weird clicking sounds from the PC, blue screen errors, and other random errors/crashes when trying to access saved files.
The traditional style hard disk drives (HDD) have disks spinning inside that can eventually wear out and “crash”. HDDs can also sustain significant damage if the laptop is dropped.
If you are replacing the drive, it is much better to use a solid state drive (SSD) instead. This newer style drive operates much faster, is less likely to fail as there are no moving parts, and will not slow down when nearing capacity. This guide will explain how to safely remove the Acer Aspire M5-583P-6423 hard drive. To avoid harming any components, you’ll need the iFixit opening tool and a Phillips #00 screwdriver. The steps are not difficult, but it’s important to follow all of them in the order that they are mentioned.
Werkzeuge
Ersatzteile
-
-
Turn the computer off and close it. Disconnect the charging cable from the laptop and place the laptop upside down.
-
Remove seventeen M2.5x8mm screws on the back cover of the laptop with the Phillips #00 screwdriver.
-
-
-
Push the back cover up from each side using the iFixit opening tool.
-
Once the back cover is separated, you’ll see all the internal components of the laptop.
-
-
-
Pull the rainbow cord out by using the iFixit opening tool on each side of its connecting slot.
-
-
-
Remove the M2.5 x 3mm screw that holds down the battery using the Phillips #00 screwdriver.
-
-
-
Lift the battery up from its edges and pull back slightly towards the hinges to remove the battery.
-
-
-

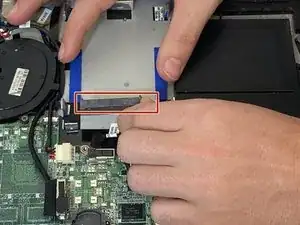

Lift the hard drive and grip the gray housing from the sides. Then, pull apart the hard drive and the housing.
-
To reassemble your device, follow these instructions in reverse order.
