Einleitung
This guide will show how to remove and replace the hard drive of an Acer 583P-9688.
Werkzeuge
Ersatzteile
-
-

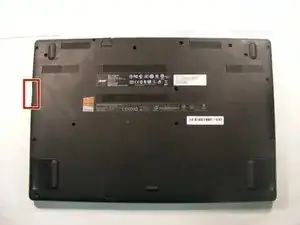

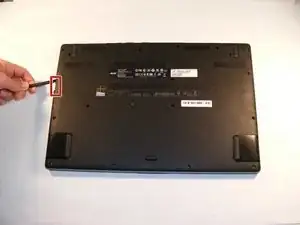

Use the spudger to slowly work your way around the perimeter starting at the marked location to pop the bottom cover off.
-
-
-

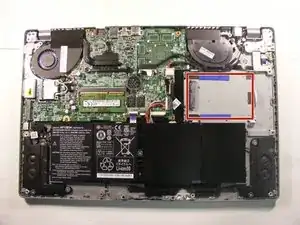

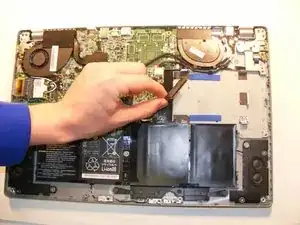

To remove the hard drive, carefully take it out of the brackets holding it in place. Once you have it out of the brackets, remove the connector from the hard drive.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
