Einleitung
In this guide, you will be replacing the power jack, which is independently secured without the use of any internal screws.
Werkzeuge
-
-

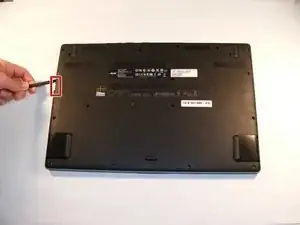

Use a Phillips #1 screwdriver to remove all eighteen 2.12 mm screws from the back plate of your Acer Aspire.
-
-
-

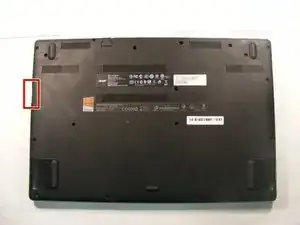

Use the spudger to remove the back plate in the highlighted area to carefully pop out the back plate.
-
-
-

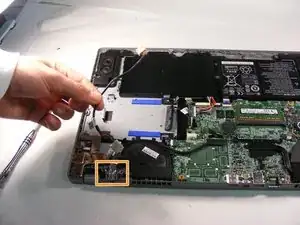

Unplug the power jack from the receptor port on the motherboard, highlighted in red.
-
Remove the power jack from designated area on the side of the computer, highlighted in orange.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
