Acer Aspire M5-583P-9688 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

In this guide you will learn how to replace the RAM in an Acer Aspire M5-583P-9688 laptop.

  1. OqPd5inuge46FrMv

    • Remove all 18 marked screws (2.12 mm) using a Phillips #1 screwdriver.

  2. sUmG41p2h6VgXQI5
    sUmG41p2h6VgXQI5
    kD21nHYJO1sYX2Dv

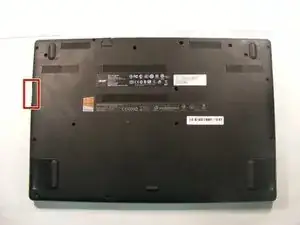

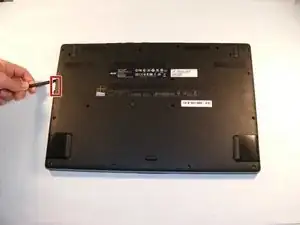

    • Use the spudger to slowly work your way around the perimeter starting at the marked location to pop the bottom cover off.

  3. AtO22IYYSu5VLfpP
    AtO22IYYSu5VLfpP
    AKCowAPe6t6DjWII

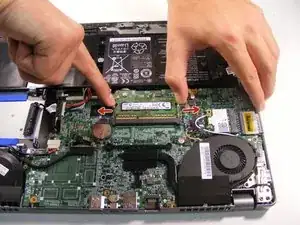

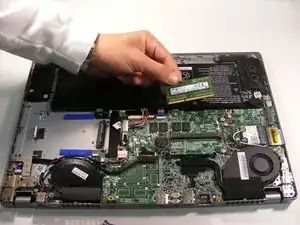

    • Pull back the brackets holding the RAM in place and remove the RAM.

    • Be careful when pulling the brackets away from the RAM. Don't pull on them too much so they don't break.

Abschluss

To reassemble your device, follow these instructions in reverse order.
