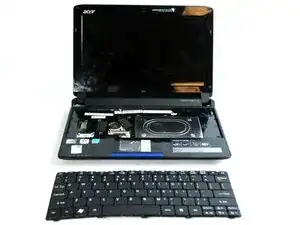

This guide will show how to remove the keyboard. Removing the keyboard will allow you to replace it or inspect the keys if there is a mechanical problem.
Werkzeuge
-
-
Place the netbook bottom-side-up on a flat surface.
-
Locate the unlock latch on the top right corner of the back.
-
-
-
To unlock the battery, slide the lock latch in the direction indicated by the unlocking icon. You should see the orange indicator which means that the latch is unlocked.
-
-
-

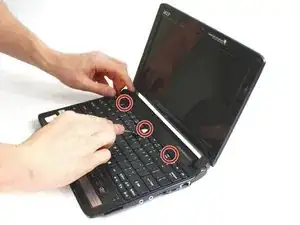

Locate the three latches along the top crevice along the top rows of keys and the plastic boarder.
-
-
-

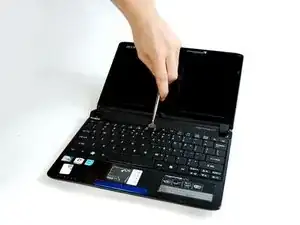

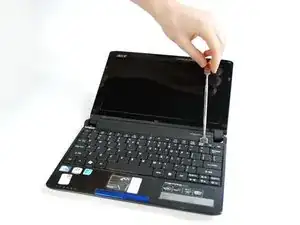

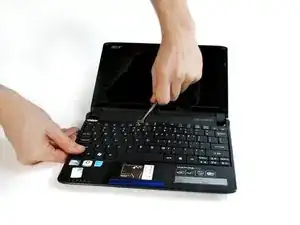

Using the metal spudger, gently pry each tab releasing the keyboard. Make sure as you move to each new one that the previous one does not reset itself.
-
-
-

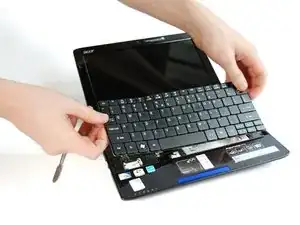

Check for tabs on the side of the keyboard.
-

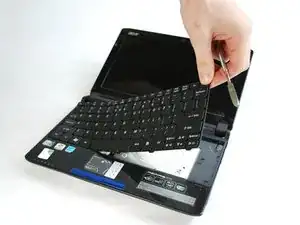

If there are no tabs lift the top of the keyboard.
-
To reassemble your device, follow these instructions in reverse order.
