Acer Aspire One 532h-2806 Keyboard Replacement

Geschrieben von: Julie Paula
  • Kommentare: 0
Acer Aspire One 532h-2806 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

In order to remove the keyboard from the Acer Aspire One 532h-2806, one will need a metal spudger tool. This guide may be needed if one needs to access the fan, headphones or USB jacks.

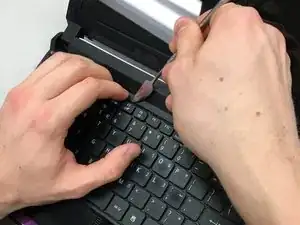

  1. UiUvXPlWPUlNoChH

    • Make sure the laptop is turned off and the battery is removed.

    • Above the top row of the keys, locate three plastic latches.

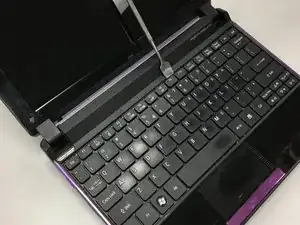

  2. iCpDKNR4plbkUkLK

    • Use the medal spudger to press each tab. The keyboard should release.

    • Slide the spudger, so that the tabs do not reset after pressing each one.

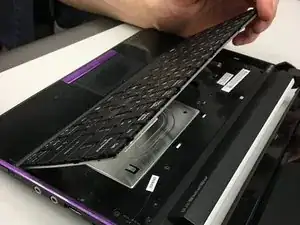

  3. KXeSwC532tBeHMSb

    • Gently lift the keyboard up.

    • The keyboard ribbon cable is still attached to the motherboard.

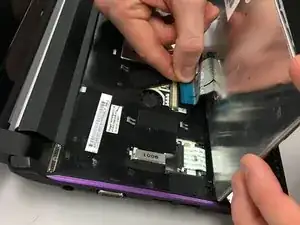

  4. eXOSYRWBeZQnn5el

    • Carefully unplug the connector sticker on the back of the keyboard.

    • Be gentle, do not force it out.

  5. 6LClERsVEY3u2pAZ

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
