Acer Aspire One 722 Hard Drive Replacement

Geschrieben von: Christian Barboza
  • Kommentare: 3
Acer Aspire One 722 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

Hard drives or HDDs contain all of the programs and files used by your computer. It’s important to make sure yours is working correctly. If it does not work correctly, it can drastically slow your computer down and even render it useless.

If you’re experiencing data issues or simply running out of space, follow along with this guide to replace the hard drive in your Acer Aspire One 722 in no time.

Prior to beginning the guide, power off your device and remove the battery.

  1. nWJIkCBO6R15TKPD

    • Power down the netbook by pressing the power button on the top left corner.

  2. kneHOGD6DH1lYLdj

    • Close the netbook and flip it over so that the back is facing up.

  3. W1tU6UwriSYRsxOB

    • Slide the button below the battery to the right while simultaneously pulling the battery out.

  4. YJxo4ko2rSnSAH1n
    YJxo4ko2rSnSAH1n
    EQFy4vSxbMc5lHb1

    • If necessary, remove the old battery and replace it with a new one.

  5. 2ToeRxEtNOcnJgkP

    • Check the thin grooves on the side of the battery entry and line the replacement battery up to the grooves.

    Thanks-gr8 guide

    hotcatz -

    Thanks for the easy to follow instructions and for the great pictures. That made everything easy.

    Siegfried Harrison Ph.D. -

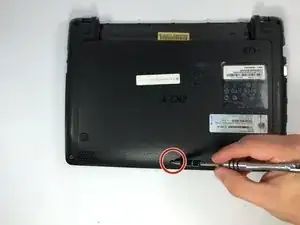

  6. qpvnrHQMZMi52kIZ

    • Ensure the Laptop is powered down with the battery removed prior to beginning.

    • With the battery cavity facing away from you, use the Phillips #0 to remove the center screw which secures the backplate.

    • Make sure to keep track of these screws for reassembly.

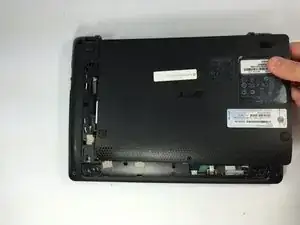

  7. WhJWbgQIvDK1WINI

    • Gently lift up and pull away the backplate from the chassis to remove.

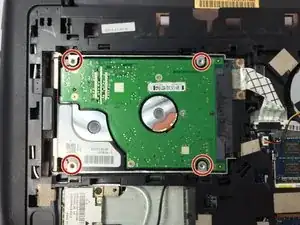

  8. TShOYWtVHQOq5DlV

    • With the backplate removed, locate the HDD in the upper left corner of the device.

    • Use the Phillips #0 screwdriver to remove the four corner screws securing the HDD to the chassis.

    • Make sure to keep track of these screws for reassembly.

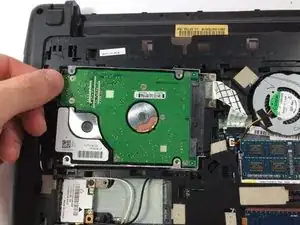

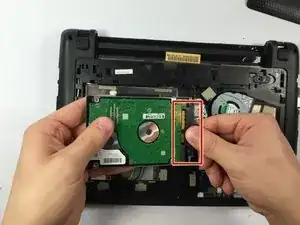

  9. oWu1kIJwVddbOrd1
    oWu1kIJwVddbOrd1
    KJ6qOXgLvLUMvjJd

    • Gently lift and secure the HDD with one hand and carefully remove the SATA and power connections with your other hand.

    • Once removed, store the replaced drive in an anti-static environment to ensure its integrity.

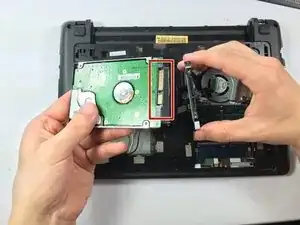

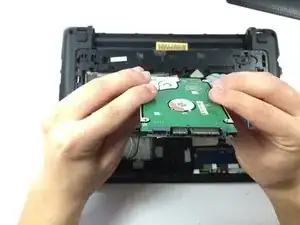

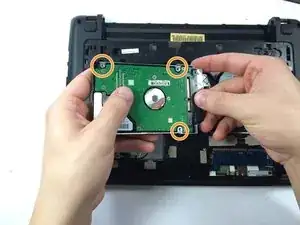

  10. W1M6WATYtrUQq1CG
    W1M6WATYtrUQq1CG
    jb1NtXC123WBrbMl
    nUQrqH5xqCVj5M4K

    • With your replacement HDD in hand, reseat the power and SATA cables removed from the previous drive.

    • The plugs are diffrent sizes so there is no fear of mixing them up

    • With the cables attached, align the four mounting points in the corner of the drive with the chassis and reseat the four Phillips #0 screws that were removed earlier.

Abschluss

To reassemble your device, follow these instructions in reverse order., taking special care in replacing the back cover. and battery.
