Einleitung

This guide will help you replace the display of your Acer Aspire One 751h-1948.

  1. CjInhNYHHZFTGRHX
    • Close the laptop and flip it over to view the back of the laptop.

  2. tFNBZigEnvLUY2PH
    tFNBZigEnvLUY2PH
    ruUHYkaNhpDMFYdi
    kdOsWkq1bwcXfZ2r
    • Unlock the right side of the battery by sliding the battery lock to the right. Then slide the left lock to the left and remove the battery.

  3. VmBTeaG1XcMSOVoA
    VmBTeaG1XcMSOVoA
    k3YS5bmIkMVOomtY
    • Unscrew the two Phillips #0 (M2-L2.5 mm) holding down the network card panel.

    • These screws don't come all the way out.

  4. PsRRWyhpBEcMrAAX
    PsRRWyhpBEcMrAAX
    Eg6xiAWETX6nhfwt
    QkCssUAiOVqEJ5yg
    • Unplug the two connecting cables by lifting them up. They should unclip easily.

  5. AuB6ZqBsxLS6DyXp
    AuB6ZqBsxLS6DyXp
    lQMYpwABjOoEr5hl
    J3KP2ki5xSHSUkuf
    • Remove the screw Phillips #0 (M2-L3 mm) holding down the network card. Pull out the card.

  6. 3XoIwbXQy3yLHNHE
    • Unscrew the Phillips 0# (M2 L2.5 mm) screw and remove the cover panel.

    • These screws will not come out all the way.

  7. TpLUY3GqwmgXqjbm
    TpLUY3GqwmgXqjbm
    4vjOyZQYohNKFY4p
    5xyYQ3gtjck2TLFY
    • Remove the hard drive by sliding it to the left and pull it out.

  8. BHHS1ZGBZRfenPsI
    BHHS1ZGBZRfenPsI
    IBW1sNVWegMeEyvB
    • Unscrew the Phillips #0 (M2-L2.5 mm) screws.

  9. TX6BjU5D6mDCYAgY
    TX6BjU5D6mDCYAgY
    YdyFtsSFWMZCQMMP
    Z3iHJgQv4KWZiU3M
    • Use the plastic opening tool to push in each of the four clips and carefully lift the keyboard.

    • Don't lift the keyboard completely so that you don't damage the ribbon cable underneath.

  10. ehAKiSgOkhLyYncs
    ehAKiSgOkhLyYncs
    2PefBf1XesHgt4r5
    • When you remove the keyboard, be careful not to damage the ribbon cable that attaches it to the motherboard.

    • Unplug the ribbon cable by gently lifting the black tab up. Then remove the cable.

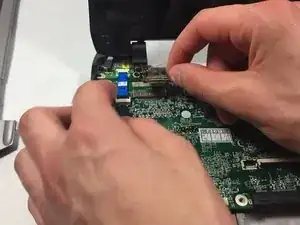

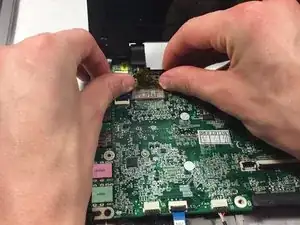

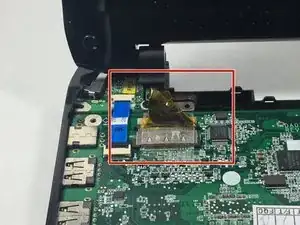

  11. leghnb2XEdb5jCRL
    leghnb2XEdb5jCRL
    2RWQFRNBsLbBvBAP
    EovAYAhAtxokIoRR
    • Unplug the SCD cable

  12. 4lnxIqXGoeNuEcOn
    4lnxIqXGoeNuEcOn
    ygMdtW6NO3LlL5VD

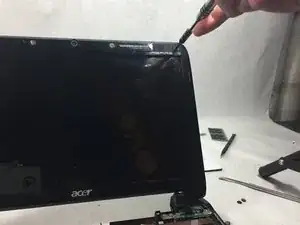

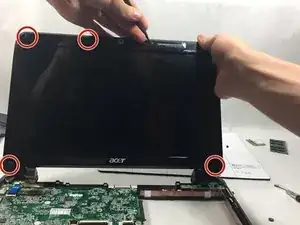

    • Use the spudger to remove all rubber pads covering the screws for the upper casing.

    • Then unscrew all the Phillips #0 (M2-L5 mm) screws under rubber pads.

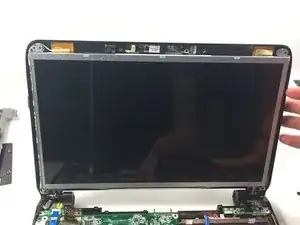

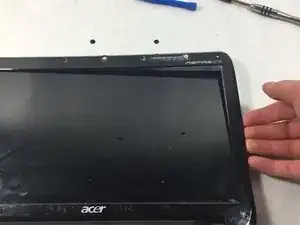

  13. UFKkYOvWlc4PRCjP
    UFKkYOvWlc4PRCjP
    hEdMHMYsAcAhdBCZ
    UBFfc6JSwqZqDtrU

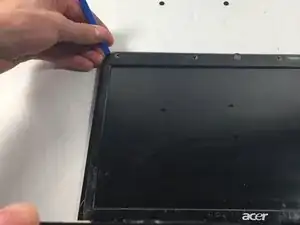

    • Separate the upper casing from the display.

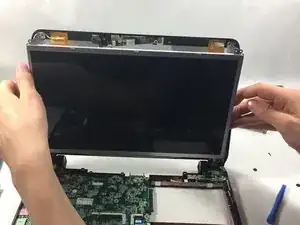

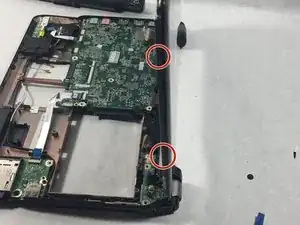

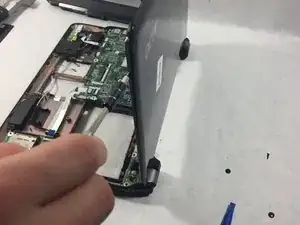

  14. V1POymXZm1Q52Pyl
    V1POymXZm1Q52Pyl
    x4cIEVORLS1LryY6
    2dxpp5naPI16YJnS
    • Unscrew all the Phillips 0# (M2-L2.5 mm) on each side of the display.

  15. gn1lZgehZktL3HRY

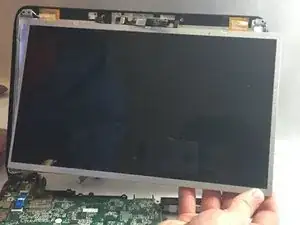

    • Separate the screen from the metal frame that secures it to the upper casing and remove the screen.

    • Be careful, the display is very sensitive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
