Acer Aspire One 751h-1948 RAM Card Replacement

Geschrieben von: Francisco Monteiro Junior
  • Kommentare: 0
Acer Aspire One 751h-1948 RAM Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the RAM in the Acer Aspire One 751h-1948

  1. yJD3SEjYHhqCHZDC

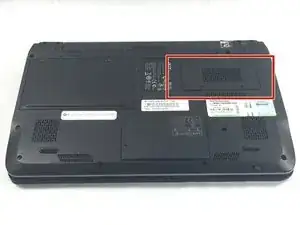

    • Below the battery to the right corner of the laptop the RAM card will be located there.

  2. EKOtsdlasRLsfx5E
    EKOtsdlasRLsfx5E
    CDKif1LpYeBIJpbR
    6N3kjkPSOhcR4CMv

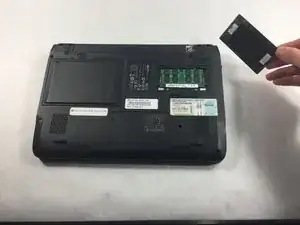

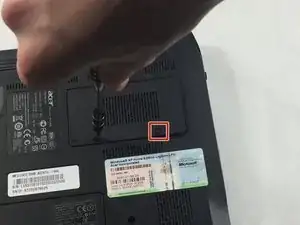

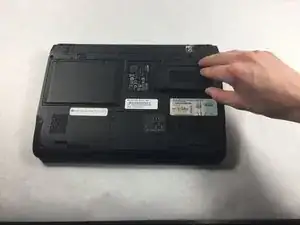

    • There are two Phillips #0 (M2-L2.5 mm) screws that is securing the cover. Remove these screws and lift up the cover panel.

  3. SPCeLKJrDcxeokqr
    SPCeLKJrDcxeokqr
    MrVhFQQuDEACSHTV

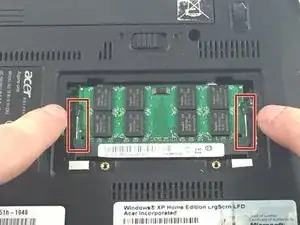

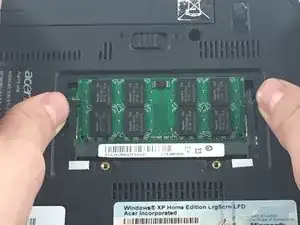

    • Use your thumbs to push the RAM clips out. The card should lift up when its released. It can then be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
