Einleitung
A damaged WiFi module will not allow you to connect your laptop to the internet. Folow this guide and we will show you how to replace the WiFi module.
Werkzeuge
-
-
Power the laptop off.
-

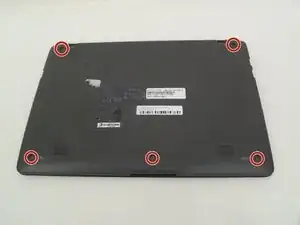

Flip the laptop over and position it so the opening faces you.
-

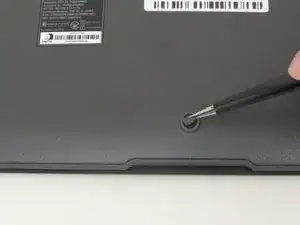

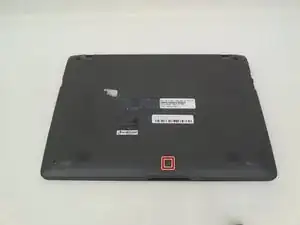

Remove the rubber foot located near the opening side of the device using tweezers.
-
-
-

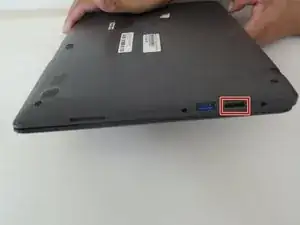

Identify the HDMI port located in the side of the laptop opposite to the power button.
-

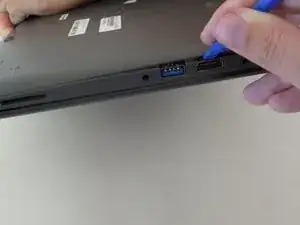

Insert the plastic opening tool into the divet of the back panel located above the HDMI port.
-

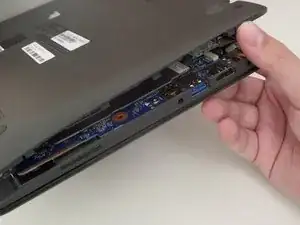

Pry along the laptop frame until the back panel comes loose.
-
-
-
Rotate the device so the opening faces you again.
-

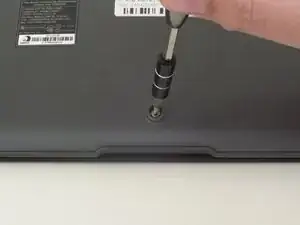

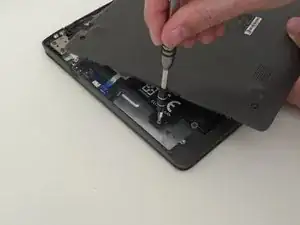

Hold the back panel away from the laptop and remove the 4-mm screw using the PH0 screwdriver.
-

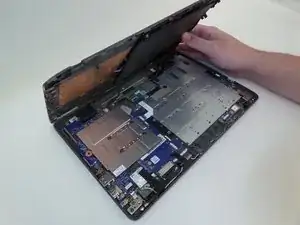

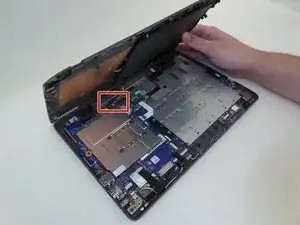

Lift the back panel gently.
-
-
-

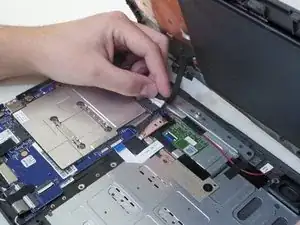

Unplug the cable that connects the battery to the motherboard.
-
Detach the back panel, which still includes the battery.
-
-
-

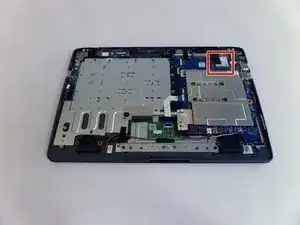

Position the computer so the opening side faces you.
-

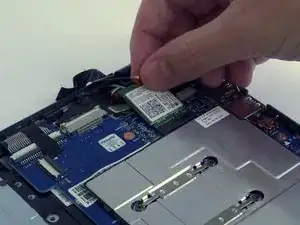

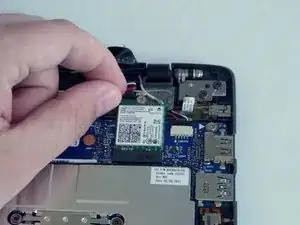

Remove the tape holding the WiFi module using tweezers.
-
-
-

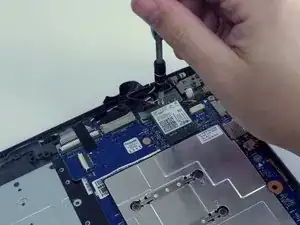

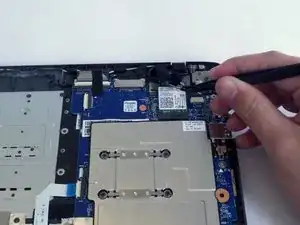

Remove the 3-mm screw that holds the WiFi module to the motherboard using the PH0 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
