Acer Aspire One Cloudbook 14 AO1-431-C8G8 Battery Replacement

Geschrieben von: Joseph
  • Kommentare: 0
Acer Aspire One Cloudbook 14 AO1-431-C8G8 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

2 - 4 Minuten

Einleitung

The battery is a key component to giving the laptop power. Without the battery there will be no power for the laptop to function properly. This guide will show you how to remove and replace the battery.

  1. HTNhUwW4t1bLL3yp
    HTNhUwW4t1bLL3yp
    FnbaUxQHHLoRVAOk

    • Remove the ten 7mm Phillips #0 screws from the bottom.

  2. n6f6saQgXKH2SS5S
    n6f6saQgXKH2SS5S
    RTMYXaAdjUutcikQ

    • Insert a plastic opening tool under the bottom cover and slid it around the perimeter until all of the clips release.

  3. STVfZOrVmxshCddG
    STVfZOrVmxshCddG
    PUjoK1pOv3DlbFX6

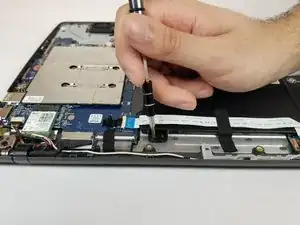

    • Remove the two 5mm Phillips #0 screws from the battery.

  4. f1AM6gSheqiRjOL3
    f1AM6gSheqiRjOL3
    5x4Oatc6OpB2Eqn2
    6JU5MwDAQGOawYSU

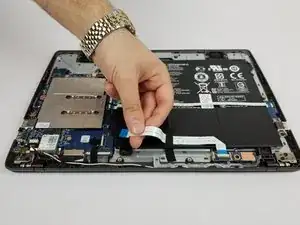

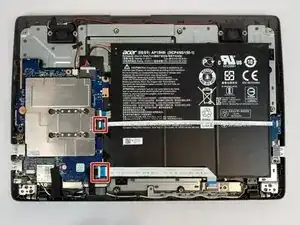

    • Use a spudger to flip up the retaining flaps on the ribbon cable ZIF sockets.

    • Remove the ribbon cables from the sockets.

  5. mRIMsmHvBnLdK1lp
    mRIMsmHvBnLdK1lp
    klFvRyfHNx3RPSVc
    QIdE2SXHbZYC2ObM

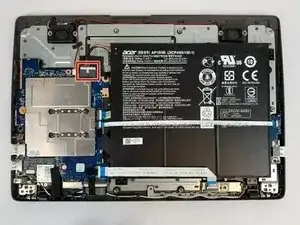

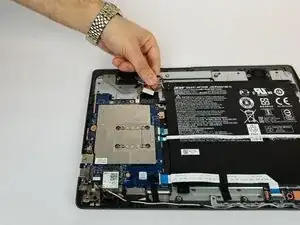

    • Disconnect the battery from the motherboard.

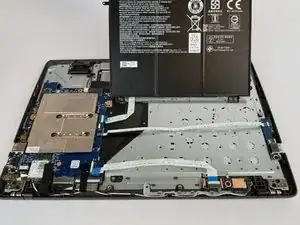

    • Remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
