Einleitung

The speakers are the main source of sound coming from the laptop. This guide will show you how to replace the speakers.

  1. HTNhUwW4t1bLL3yp
    HTNhUwW4t1bLL3yp
    FnbaUxQHHLoRVAOk
    • Remove the ten 7mm Phillips #0 screws from the bottom.

  2. n6f6saQgXKH2SS5S
    n6f6saQgXKH2SS5S
    RTMYXaAdjUutcikQ
    • Insert a plastic opening tool under the bottom cover and slid it around the perimeter until all of the clips release.

  3. uhvijGlVBWMTBlc6
    uhvijGlVBWMTBlc6
    NIDVTGVdDMhabxkZ

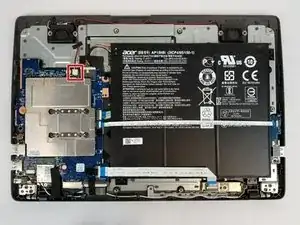

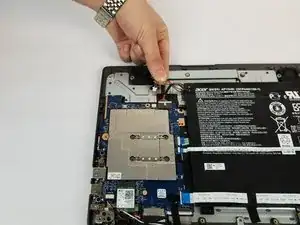

    • Unplug speaker connector from motherboard.

  4. 1lw4OQKYQOJkQw2K

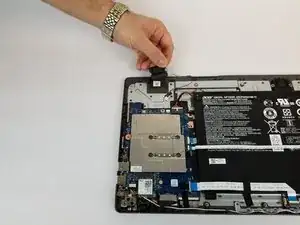

    • Lift both speakers from pegs holding them in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
