Acer Aspire One Cloudbook 14 AO1-431-C8G8 USB Port Replacement

Geschrieben von: Joseph
  • Kommentare: 0
Acer Aspire One Cloudbook 14 AO1-431-C8G8 USB Port Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

The USB port allows you to connect other devices to the laptop. This guide will show you how to remove and replace the USB port.

  1. HTNhUwW4t1bLL3yp
    HTNhUwW4t1bLL3yp
    FnbaUxQHHLoRVAOk

    • Remove the ten 7mm Phillips #0 screws from the bottom.

  2. n6f6saQgXKH2SS5S
    n6f6saQgXKH2SS5S
    RTMYXaAdjUutcikQ

    • Insert a plastic opening tool under the bottom cover and slid it around the perimeter until all of the clips release.

  3. FuQLSJBZDttfXUWy
    FuQLSJBZDttfXUWy
    RHiPg4u6aGG6kULq

    • Use a spudger to flip up the retaining flap on the ribbon cable ZIF socket.

    • Remove the ribbon cable from the socket.

  4. RB6BOHaVQV1kYJgD
    RB6BOHaVQV1kYJgD
    ua5ZL51EyTpYdm5C

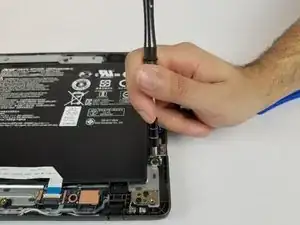

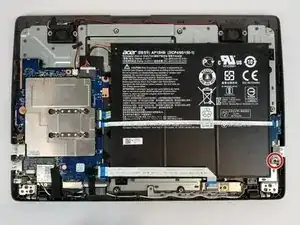

    • Remove the 5mm Phillips #0 screw from the USB port.

    • Remove the USB port from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
