Einleitung

The Wifi card allows the user to connect to a wireless network. This guide will show you how to remove and replace the Wifi card in this laptop.

  1. HTNhUwW4t1bLL3yp
    HTNhUwW4t1bLL3yp
    FnbaUxQHHLoRVAOk
    • Remove the ten 7mm Phillips #0 screws from the bottom.

  2. n6f6saQgXKH2SS5S
    n6f6saQgXKH2SS5S
    RTMYXaAdjUutcikQ
    • Insert a plastic opening tool under the bottom cover and slid it around the perimeter until all of the clips release.

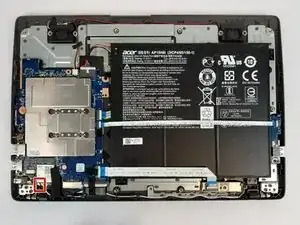

  3. Yd2YUiVYqDZ2ZrE6
    Yd2YUiVYqDZ2ZrE6
    lOBGZn2YnAwkktSP
    • Disconnect the two antenna cables from the Wi-Fi card.

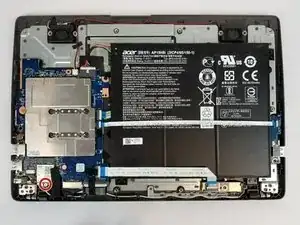

  4. lJsIuXcVwxVcjB2Y
    lJsIuXcVwxVcjB2Y
    BZxOZOeNJSxw2xFj

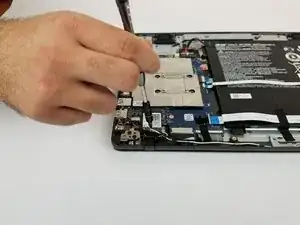

    • Remove the single 5mm Phillips #0 screw from the Wi-Fi card.

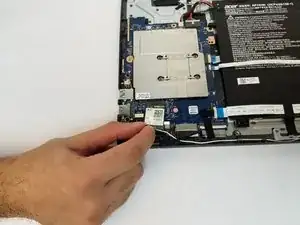

  5. DNWI44KWGtBX2LFO
    DNWI44KWGtBX2LFO
    BAnRDCZOSurYZrrw

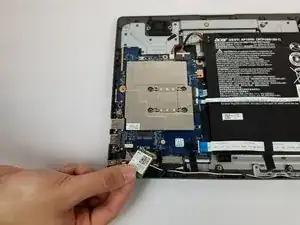

    • Slide out the Wifi card from its slot by pulling parallel to the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
