Acer Aspire One D150 Memory Upgrade Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

3 - 5 Minuten

Einleitung

  1. nnGNcfWI3l1TGaEH

    • Be sure computer is unplugged, turned off, and battery is removed.

    • Then, locate memory door and remove screw with #0 Phillips screw driver.

  2. vrXKSnfDovuAAMaE

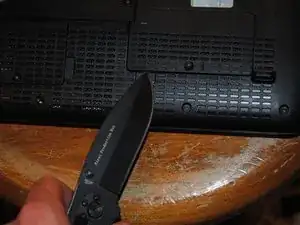

    • If needed, pry open door using knife or flat screw driver.

  3. KeP4JRHZMRQwKZ3F
    KeP4JRHZMRQwKZ3F
    ETPLvOWJsTsAHrQu
    rb1bYLGUGTh22gIM

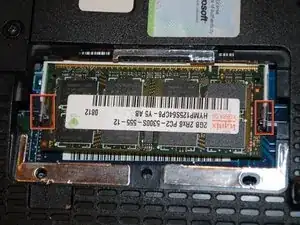

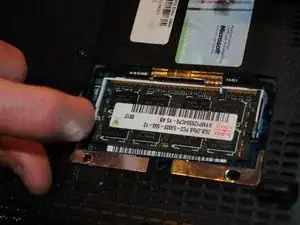

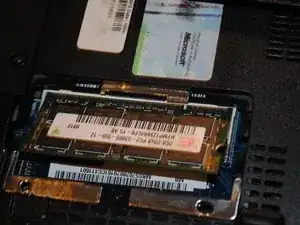

    • Remove plastic door to expose lone memory DIMM.

    • Press two metal clasps on both sides of the DIMM apart to allow memory module to pop up.

  4. GB4haN5Wy1BQM32E

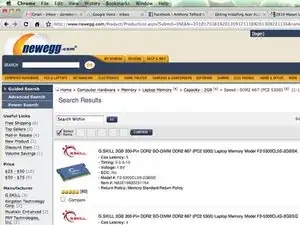

    • Head over to Newegg and buy yourself a 2gb DDR2, 667mhz laptop memory to install in your Aspire One.

Abschluss

To reassemble your device, follow these instructions in reverse order.
