Acer Aspire One D225-1625 Wireless Card Replacement

Geschrieben von: Alexander Ilibasic
  • Kommentare: 5
Acer Aspire One D225-1625 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

If the Acer Aspire One D255-1625 will not connect to the internet, use this guide to replace your wireless card.

The wireless card  allows a computer to connect to the internet by using frequencies transmitted by a router or a cellular tower. A damaged or defective wireless card will not allow your device to connect to the internet.

Before replacing the wireless card make sure to see our guide “Acer Aspire One D255-1625 Wireless Card Troubleshooting”.


  1. ZpaQcT1ZHNv5vWuj
    ZpaQcT1ZHNv5vWuj
    4I1SlVZK4n5Gh3Li
    scHuSLI6jKIw16WG

    • Before you replace the battery, ensure that the device is unplugged and powered off.

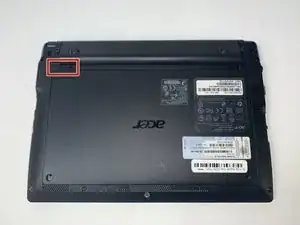

    • Pull the upper left switch on the back of the laptop to the left into the unlock position.

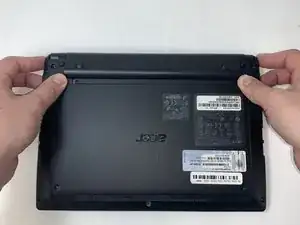

    • Pull the upper right switch to the left and hold it in place.

  2. RIBGgBNUlsYIGdPt

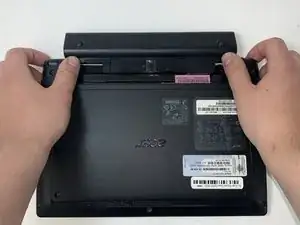

    • Pull the battery straight out.

    • To properly dispose of battery, locate your nearest recycling plant to dispose of it there.

    May want to add a second photo that better shows the battery being removed.

    John Lamothe -

    Also, what should they do with the battery once it’s removed? How should they dispose of it?

    John Lamothe -

  3. hjEqQknxY6aFMXMU
    hjEqQknxY6aFMXMU
    qB2HrdYF3ylCxmVX

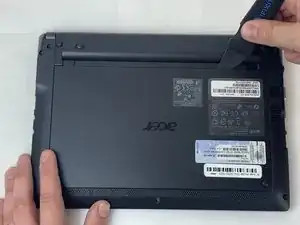

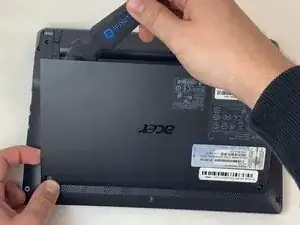

    • Use iFixit’s Jimmy tool to remove the bottom panel of the device.

    • Wedge the tool into the top middle of the panel and slide back and forth across the edge until the back gently pops off.

  4. iOLNkoVm3Iy6ijWx
    iOLNkoVm3Iy6ijWx
    KEOXokeddCGQjpvd

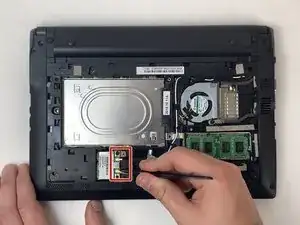

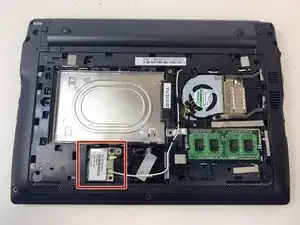

    • Use tweezers to disconnect the black and white wires from the wireless card by pulling them up off the card.

    Need another photo that’s closer and shows the disconnection better.

    John Lamothe -

  5. WAMPmGSSADkNbst5
    WAMPmGSSADkNbst5
    yXWeRPTSIN3bOoHU

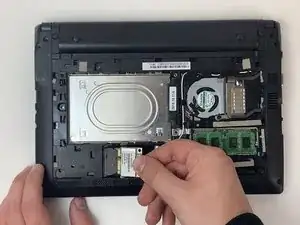

    • Use a Phillips #1 screwdriver to unscrew the top right screw on the wireless card.

    • Pull out wireless card by sliding it out to your right.

    How will it come out? Describe it.

    John Lamothe -

Abschluss

To reassemble your device, follow these instructions in reverse order.
