Acer Aspire One D250-1151 Keyboard Replacement

Geschrieben von: Donny McKay
  • Kommentare: 0
Acer Aspire One D250-1151 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

20 Minuten

Einleitung

  1. oySCACbhwJAGFvSD

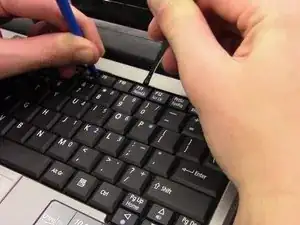

    • Push the tab located behind the F8 key with a plastic opening tool.

    • Fit a metal opening tool in between the keyboard and computer frame with the tab held.

  2. TAt6ltdViANnMT3B

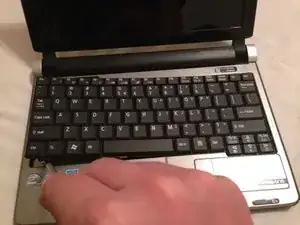

    • Lift the keyboard up with the spudger and lift along edges until the keyboard is free.

  3. ZIpX2DhCGfnO5MSZ

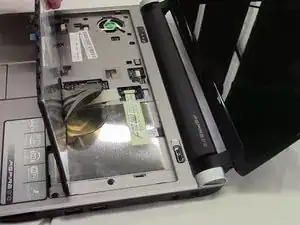

    • Gently remove the keyboard power ribbon that is attached to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
