Acer Aspire One D255-1625 Fan Replacement

Geschrieben von: Zahria Martin

Kommentare: 2

Acer Aspire One D255-1625 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

The fan actively cools your computer. The fan is important for keeping key components cool and ensuring your computer functions properly. When the fan malfunctions the computer could overheat and this would damage critical components within the computer.

If this occurs check the fan for excessive dust or any debris. If there is debris or your fan is making loud unusual sounds follow this guide to replace your fan.

Werkzeuge

Ersatzteile

Acer Aspire One D255 Fan

Schritt 1

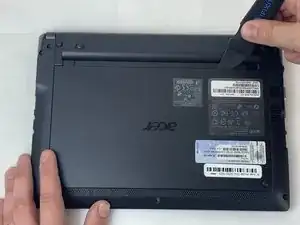

Before you replace the battery, ensure that the device is unplugged and powered off.
Pull the upper left switch on the back of the laptop to the left into the unlock position.
Pull the upper right switch to the left and hold it in place.

Schritt 2

Pull the battery straight out.
To properly dispose of battery, locate your nearest recycling plant to dispose of it there.

May want to add a second photo that better shows the battery being removed.

John Lamothe - 12/03/20

Also, what should they do with the battery once it’s removed? How should they dispose of it?

John Lamothe - 12/03/20

Schritt 3

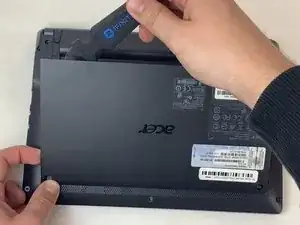

Use iFixit’s Jimmy tool to remove bottom panel of device.
Wedge the tool into the top middle of the panel until the back gently pops off.

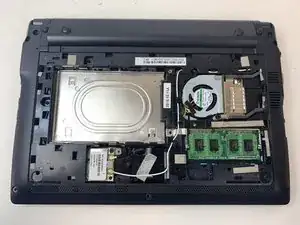

Schritt 4

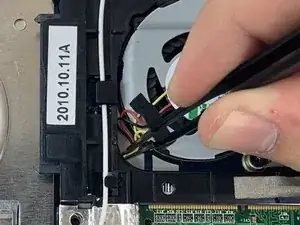

Use the tweezers to disconnect the fan's wires from laptop.

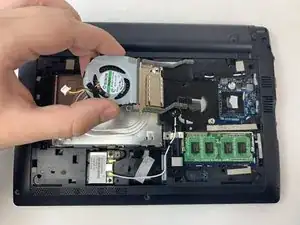

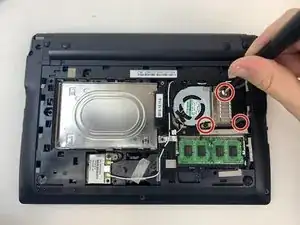

Use the Phillips #1 screwdriver to remove the three 4mm screws that hold the fan in place.
The 3rd screw on the bottom right is extremely difficult to remove as it requires you to bend the motherboard slightly in order to reach it.
