Einleitung

Damaged screens are one of the most common issues that will occur with a computer. While most laptops require the complete disassembly of the computer to replace the screen, the Acer Aspire One D255E requires significantly less work. You should read through the entire guide before performing the repair and should have all necessary tools readily available. You should also find a safe location to store the various screws taken out of the computer to ensure that they do not get mixed up or lost.

When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

  1. UpOLP5EUHFoRbyrB
    UpOLP5EUHFoRbyrB
    vfFFVBKuF4Tk1qFy

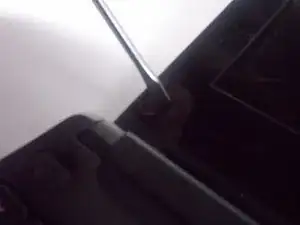

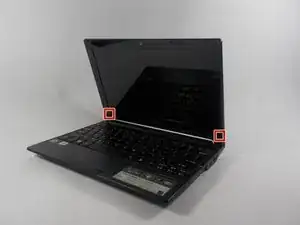

    • Using a spudger remove the two screw covers on the front of the computer.

  2. b4SALhBOvgPnVULW
    b4SALhBOvgPnVULW
    NoP56TP3KBSBvDv6

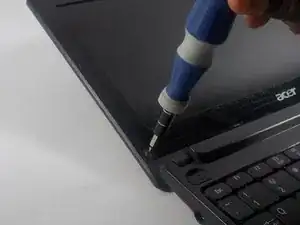

    • Remove the two 1.2 mm Phillips #1 screws that were located under the screw covers.

  3. SEjjWGexLjxVdcnU

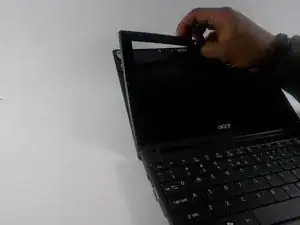

    • Using a spudger for assistance remove the front panel of the screen.

    • It is recommended that you use a plastic spudger to reduce the chance of damaging any internal parts.

  4. PsaRZ1Lr2Exq2YRc
    PsaRZ1Lr2Exq2YRc
    nghYBAdmArJgSeqR
    jbyBxMJDW6RS1rOn

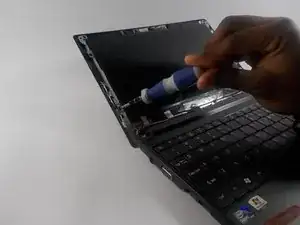

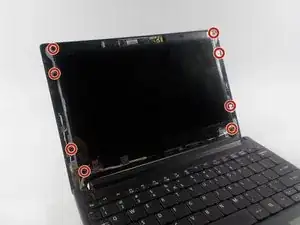

    • Remove the eight 1.2 mm Phillips #1 screws holding on the screen.

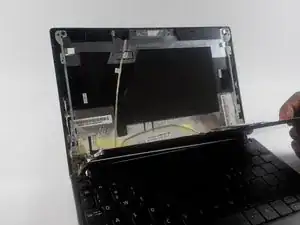

    • There are wires connected to the screen unit. Make sure you do not attempt to pull off the screen just yet!

  5. PxCBqvDjucMEkTGG

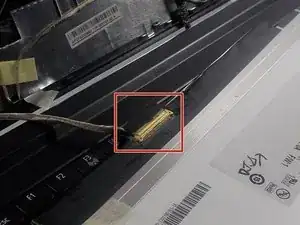

    • Carefully remove the display ribbon cable from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
