Acer Aspire One D270 Hard Drive Removal

Geschrieben von: Maggie Zhelesnik
  • Kommentare: 5
Acer Aspire One D270 Hard Drive Removal

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

Step-by-step instructions on how to remove a hard drive from an Acer Aspire One D270 computer.

  1. NgvFncUvLA2SXvnu
    NgvFncUvLA2SXvnu
    qy3mCjK6yasyXFem

    • Find a clean and flat surface to work on. Turn off the system by pressing and holding the power button.

    • Disconnect power cord and network cable by gripping the plug and pulling straight from the socket.

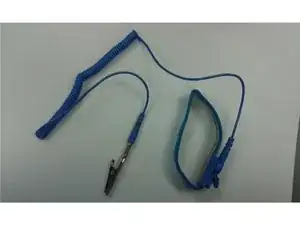

    • Put on antistatic wrist strap and ground yourself by attaching the clip to an unpainted piece of metal that is touching the ground, such as a desk.

  2. nXgHOOPLGMvTqYNW
    nXgHOOPLGMvTqYNW
    LxS11UR3NMbw3HEe
    PKALcoULIlldsN2s

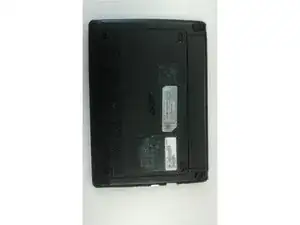

    • To remove the battery, turn the system with the top down and the battery facing up and away from you.

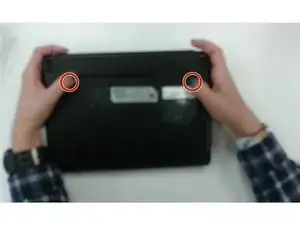

    • Slide the battery lock/unlock button to unlock, by pressing down on the tabs and sliding the lock outwards.

    • Push the battery release button and slide the battery out and off the system.

  3. UPlWP3qOJOJQyJiP
    UPlWP3qOJOJQyJiP
    1I6FAxgCjdaqfoVn

    • To remove the keyboard, turn the system right side up.

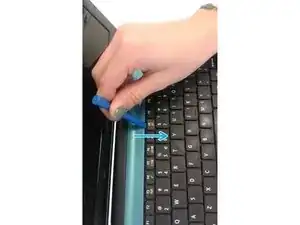

    • Unlock the latch above the F8 key at the top of the keyboard by prying up towards you with a plastic opening tool. Continue along the top of the keyboard and unlock the remaining 4 latches.

    • Note, the keyboard will flex when you pry on it, you are not breaking it.

    • Lift the keyboard out from the top, until you can see the keyboard FPC (Flexible Printed Circuit) cable.

    • Carefully pull out the keyboard cable. Note: If you are not sure you will be able to get the cable back in the correct way, mark the cable and the socket with a sharpie.

    • Set the keyboard down in a clean flat space.

  4. RWUI2fSesxX5iBKa
    RWUI2fSesxX5iBKa
    R6Vac5VgURtAlTER

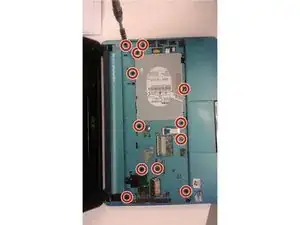

    • To remove the base cover, remove all the screws from under keyboard using a J1 Phillips head screwdriver. There are 13 screws.

    • Note, ten of the screws are size M2x8 and three are size M2x4, remember where they go.

    • Flip the system over.

    • Press down on the tab labeled door release until it releases. The tab is located on the lower right side of the system.

    • Remove the base cover by removing the three screw opposite of the battery side.

  5. pb5OlUNxeqnIlKOL
    pb5OlUNxeqnIlKOL
    XvLBxGAaGODM3Frl
    H5HQ1DGBLHGGFIXJ

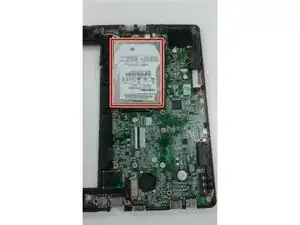

    • Flip the device back over and then locate the hard drive. It is the large silver rectangular piece with a label on it.

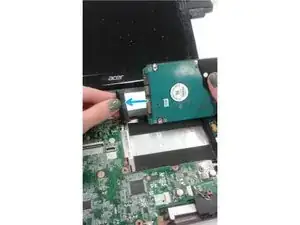

    • Pull the hard drive up from the end opposite the FPC cable and out to the right.

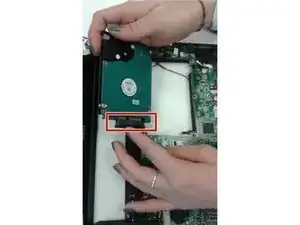

    • Disconnect the hard drive FPC cable from the mainboard.

    • Place the hard drive on a clean, dry, flat surface.

Abschluss

To reassemble your device, follow these instructions in reverse order.
