Acer Aspire One P1VE6 Hard Drive Replacement

Geschrieben von: Wade Vierheller
  • Kommentare: 2
Acer Aspire One P1VE6 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

If your hard drive is no longer working, this guide will help you replace it.

  1. bso4ae2IJvS2xGof

    • Close the netbook and turn it over so the back panel faces you.

  2. rsIClwPhQE4PTcYY

    • Locate the 4 mm Phillips #1 screw at the bottom of the back panel. Using the Phillips head screwdriver, remove the screw. Place the screw somewhere it will not be lost. Then remove the back panel by gently sliding it towards the front.

  3. RjULyn4bh3PdfDnu

    • After removing the back panel, locate the hard drive.

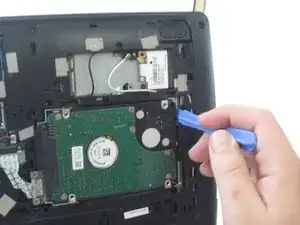

  4. seZGJuGp2UEHyMBP

    • Carefully lift up the hard drive.

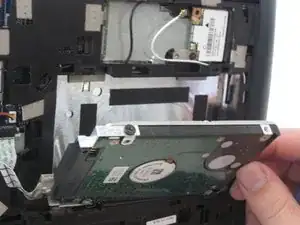

  5. cCCJZKM1AHHeuQjg
    cCCJZKM1AHHeuQjg
    v2qFBTvKF4MRqNti

    • Locate the two 4 mm Philips #1 screws holding the hard drive into its bracket.

    • Remove the two screws and place them somewhere they will not be lost.

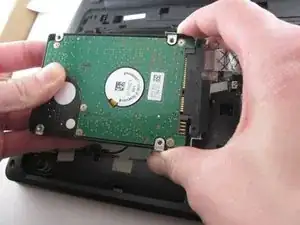

  6. IGMMlaeixqY6EtTW
    IGMMlaeixqY6EtTW
    mh2aJCQ1qGa4IAVJ

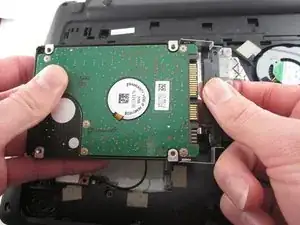

    • Unplug the hard drive from the bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
