Acer Aspire One P1VE6 WLAN Card Replacement

Geschrieben von: Wade Vierheller
  • Kommentare: 0
Acer Aspire One P1VE6 WLAN Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will teach you how to remove and replace the WLAN card.

  1. bso4ae2IJvS2xGof

    • Close the netbook and turn it over so the back panel faces you.

  2. rsIClwPhQE4PTcYY

    • Locate the 4 mm Phillips #1 screw at the bottom of the back panel. Using the Phillips head screwdriver, remove the screw. Place the screw somewhere it will not be lost. Then remove the back panel by gently sliding it towards the front.

  3. EgDJMwBhMIQxuIBe

    • Locate the WLAN Card.

  4. NpeNrB3qh6SpLIMB
    NpeNrB3qh6SpLIMB
    1bHUrocJt2ob5L3Q

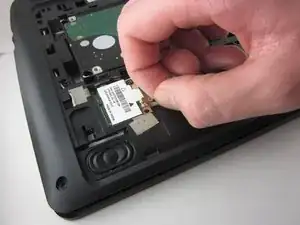

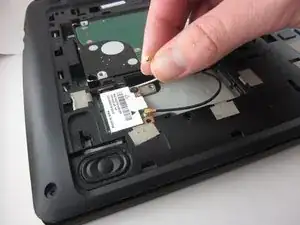

    • Unplug the white and black cables connecting the WLAN card.

  5. PYPJFrBkqEgV5Awf

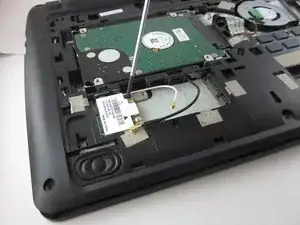

    • Remove the 4mm Phillips #1 screw holding the WLAN card holding it in place.

  6. oV5dXrrnNZ3rU5uA
    oV5dXrrnNZ3rU5uA
    lTatss2FWtWsXTmC

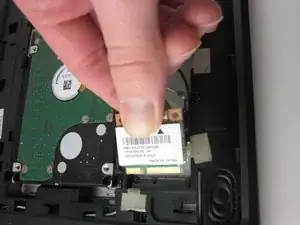

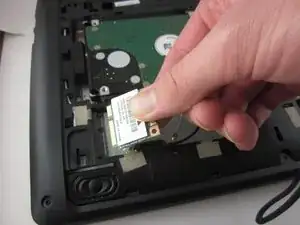

    • Unplug the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
