Acer Aspire One ZG5 Speakers Replacement

Geschrieben von: Doug Gallatin
  • Kommentare: 5
Acer Aspire One ZG5 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

29

Zeitaufwand

20 Minuten

Einleitung

This guide will walk you through how to replace the Acer Aspire One ZG5 speakers. The speakers will need to be replaced if you find your computer making no noise.

Speakers are used in computers to generate sound to create audio output for the listeners.

Please power off your device and remove the battery before performing this repair. This guide requires moderate skill.

  1. naTflZh26KaS3x6V

    • Turn the netbook upside down with the battery at the top, facing away from you.

  2. DRgkWXRoFNEbXDOk

    • Unlock the battery by sliding the switch located near the left hinge to the left "unlocked" position.

  3. p4BamwCYLJNZLTYA

    • Slide the latch located on the opposite hinge from the lock while pushing the battery up.

  4. mypM1auXeDVeYjnu

    • Gently loosen the two Phillips #0 screws in the small panel that covers the wireless card.

    • These screws are built into the panel and aren't meant to be completely removed.

  5. X4SIiJCBljpxjDr6

    • Lift up the panel and remove it from the case.

  6. BdmrwVTHpIP1CHO5

    • Disconnect the two antenna cables from the left side of the wireless card.

  7. tPSSajWYXVnh1fus

    • Remove the single 3.9 mm Phillips #1 screw from the bottom left of the wireless card.

  8. FHVmVmsqBrUb6WWr

    • Gently lift up the left side of the wireless card and slide the card out of its socket.

    mi lap NO tiene wireless card

    gustavo cordova -

  9. d5xwUQms1MVp42yn

    • Turn the netbook over and open the display so that the keyboard is facing you.

  10. QJ5RKJgepO116E6u
    QJ5RKJgepO116E6u
    XbSbdGRLKmBBxbtq
    QCsmKrWRNgagra5O

    • There are three tabs located on the top of the keyboard.

    • Start with the spudger pointing towards the display and pry up to push each tab off the keyboard.

    • As you move to the next tab, ensure the previous tab doesn't reset itself.

  11. aNpF5efmQ4OZxbBO
    aNpF5efmQ4OZxbBO
    4SWWULjBYZwT5j3b

    • Lift top of keyboard up. If it doesn't lift easily, there may be tabs on the sides - use the tool to ease them aside and/or shift the keyboard from side to side.

    • There is a short ribbon cable connecting the keyboard to the netbook.

  12. G1tECahc6AUGXUHx
    G1tECahc6AUGXUHx
    sOG5RGecLhOOADGN

    • Disconnect the ribbon by lifting the black plastic hinge and removing the clear blue cable.

    my keyboard ribbon face damaged. how to repair?

    musa musa -

  13. D24TnM65sGihuGBf

    • Close the display and turn the ZG5 over so that the battery compartment faces away from you.

  14. GjhxNByu6vrepNHc
    GjhxNByu6vrepNHc
    rXGajilxKPWSrwXp

    • Remove three 5.8 mm Phillips #0 screws from the bottom of the case

    • Remove three 3.9 mm Phillips #1 screws from the battery compartment.

    • Remove two 5.8 mm Phillips #0 screws from underneath the feet near the hinges.

  15. ApcTINtvUyKsGPEe

    • Turn the netbook back over and open the display with the keyboard cavity facing you.

  16. A4pySPYGCUXIgxON
    A4pySPYGCUXIgxON
    yJY5LB2yDGTqSLaU
    KEWZQA1QQQAKrj1M

    • Flip up the retaining flap on the trackpad ribbon cable ZIF connector.

    • Using the blue tab, pull the trackpad ribbon cable from its socket on the motherboard.

  17. o1Y5eQeDY6QMIMjp
    o1Y5eQeDY6QMIMjp
    tOxkXVDBWIZQkaKC

    • Remove the five black 4.7 mm Phillips #0 screws from the metal casing.

    • Remove the single silver 4.3 mm Phillips #00 screw from the right side of the metal casing.

  18. JlC1mokVJKXSE46A
    JlC1mokVJKXSE46A
    1W65s1XhyAZHKp2u

    • Starting at the red rings along the hinge, insert a spudger or plastic opening tool into the seam between the two halves of the case.

    • Slide the spudger toward the front of the device, releasing the small clips that hold down the top case.

    • Gently lift off the top case.

  19. fZXrhDHDkbaJeoAQ

    • Disconnect the two antenna cables from the right side of the wireless card.

  20. DocloY6JdjAUHqHg

    • Remove the single 3.9 mm Phillips #1 screw from the wireless card.

  21. NWsBUSWHRhxXvAPL

    • Gently pull the wireless card to the right and slide it out of its socket.

  22. APlZ5NhFmdsjFur6

    • Disconnect the display cable from the top left of the motherboard.

  23. 3xvYEkfLmC1iqrQB
    3xvYEkfLmC1iqrQB
    vLhxylKm2uyablVm

    • Disconnect the speaker cable from its socket on the motherboard.

  24. mkjfu2vuYBotWY4c

    • Remove three 3.9 mm Phillips #1 screws from the small I/O board.

    • Remove a single 3.9 mm Phillips #0 screw from the front of the motherboard.

    • Some laptops may instead have a single 4.7 mm Phillips #0 screw.

  25. OCDXXMWCQLuRLTrN

    • Remove the two 4.7 mm Phillips #1 screws that connect the display to the motherboard.

  26. hCmlPRSsS6u2iaxD

    • Gently lift the I/O board up from the right side of the case.

    • The I/O board is attached to the motherboard by a short cable.

    I took apart an SSD variant. At this step, there were two screws holding the SSD down, but the SSD did not come out with the main and daughter boards. Detaching the I/O cable freed the mainboard to come out with or without the daughterboard.

    unixusr -

    there are 2 silver screws that need to be removed in this step your picture shows them still installed (one is located neer audio plug, the other is located neer keyboard plug) in step 27 (next step) they have been removed without mention

    Scott Riley -

    I have added 1 gb of memory to my ZG5 thanks to this helpful guide. Total cost, including a spudger and a new mini screwdriver, to tackle the 00 Philips, GBP 17.57

    I fear I haven't put the trackpad connector back properly, but device works great with a wireless mouse. Very many thanks.

    John Serocold -

  27. quCdZkemWQHJ5IA2

    • Lift the entire motherboard assembly out the case.

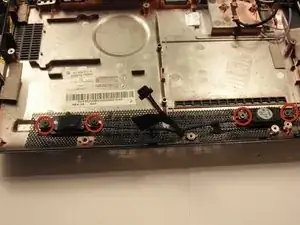

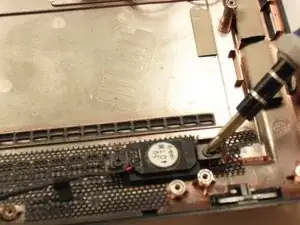

  28. oToCX61KVOMDJGjx
    oToCX61KVOMDJGjx
    FFGGpCcAYM3DXBrv

    • Remove the four 3.9mm screws.

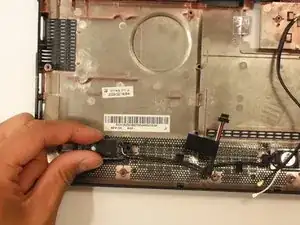

  29. qQBPgn2yefHfvctZ

    • Pull the speakers gently away from the case or they may be damaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
