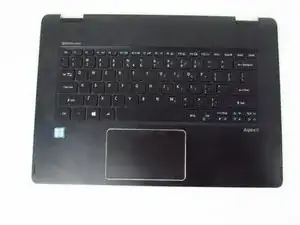

Acer Aspire R R5-471T-51UN Keyboard Replacement

Geschrieben von: John Sandor

Kommentare: 13

Acer Aspire R R5-471T-51UN Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

If you ever need to replace your Acer Aspire R (model R5-471T-51UN) keyboard, use this guide to help you navigate across the different elements connecting your keyboard. The instructions prepare you to unplug certain connections using tools like the Phillips #0 screwdriver and a spudger.

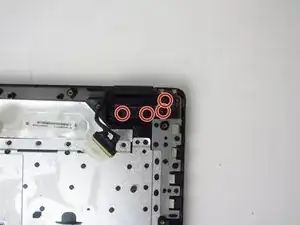

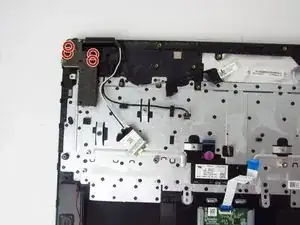

Step 5 asks you to be cautious in gently removing the battery of the laptop. From there, you will be asked to remove the motherboard, the fan, and finally the display brackets.

Before getting started, power off your device and disconnect from any other external connections.

Werkzeuge

Schritt 1

Flip your laptop over so the bottom is facing you.
Remove the twelve 5 mm screws with a Phillips #0 screwdriver.

Schritt 2

Insert the Jimmy between the back cover of the laptop and the base of the laptop and then slowly use the Jimmy to pry off the back cover of the laptop.

Schritt 3

Use your Phillips #0 screwdriver to remove the two 3mm screws on the battery.

Note that iFixit prefers first-person shots to these kinds of side shots.

Alex Watkins - 28/02/20

Schritt 4

Gently and cautiously pinch the white ends of the battery connector cable and slowly pull it from the motherboard.

Do you have a further out shot you can markup to show where on the device this is?

Alex Watkins - 28/02/20

I might also add that the connector cable is connecting the battery to the motherboard.

Alex Watkins - 28/02/20

Schritt 5

Gently lift the battery out of the laptop.
Be cautious with the lithium ion battery as you remove it.

How can I remove the battery? Note that remove is a nonspecific verb, so either add description or use a stronger verb if there are multiple ways to do something.

Alex Watkins - 26/02/20

There is actually no need to remove the battery. I just did it , going from 256 GB sata M.2 to 1TB without removing the battery.

hector bedorsky - 26/05/21

Schritt 6

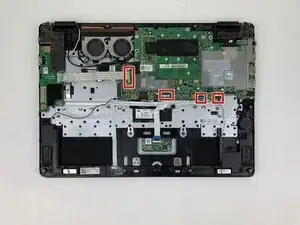

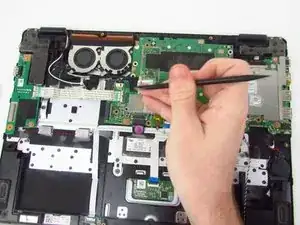

Use the spudger to flip up the locking tabs on each of the four ZIF cable connectors.
Remove each of the ribbon cables from their connectors.

Although the middle shot is blurry, the white balance is much better here. See iFixit feedback regarding this step.

Alex Watkins - 26/02/20

I think you still need to focus on this comment—how to remove the ribbon cables, and a closer view of this procedure.

Alex Watkins - 28/02/20

Schritt 7

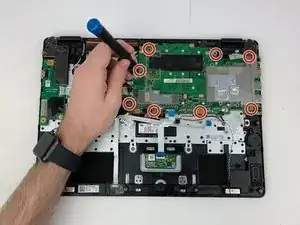

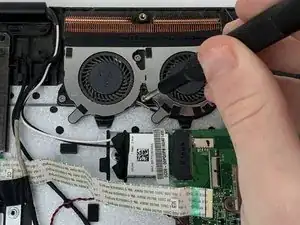

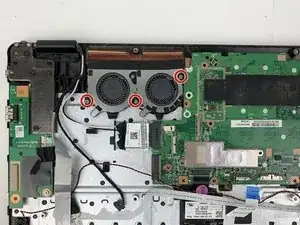

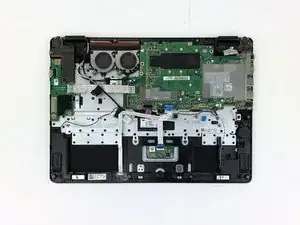

Using the Phillips #0 screwdriver, remove the eight 3 mm screws holding in the motherboard and the three 3 mm screws holding down the fan.

Note the blurry hand in the first image. What are you using the spudger for here? How should I remove the motherboard and fan?

Alex Watkins - 26/02/20

This comment still needs attention.

Alex Watkins - 28/02/20

Schritt 8

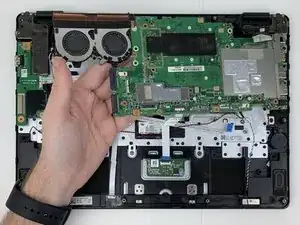

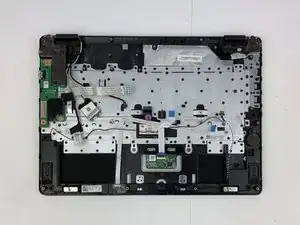

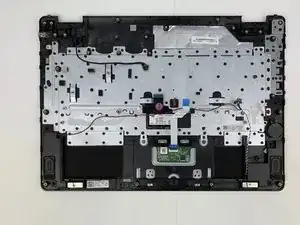

Remove the motherboard and the fan by gently pulling them out of the assembly.

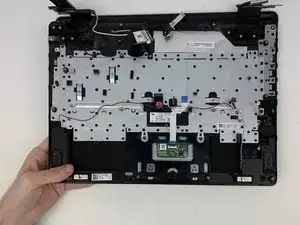

Using the Phillips #0 screwdriver, remove the three 3 mm screws holding down the daughterboard and gently pull it up and out of the assembly.
