Acer Aspire R11 R3-131T-C1Z5 Hard drive Replacement

Geschrieben von: Jacqueline Englehardt
  • Kommentare: 4
Acer Aspire R11 R3-131T-C1Z5 Hard drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Here is the guide to help you locate the Hard Drive to begin the replacement. Tools you will need to remove the screws is a PH0 sized Phillips screwdriver, anti-static wrist strap, and a metal spudger.

  1. 5NLMyY4qLKdyi4pJ
    5NLMyY4qLKdyi4pJ
    PUykLqI3I1bavysZ

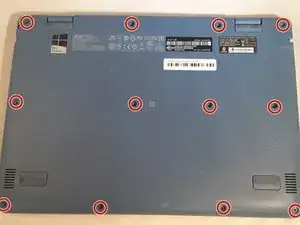

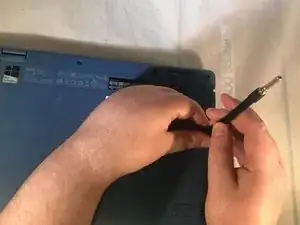

    • Flip the laptop over on its front, so that the back is facing up.

    • Unscrew the twelve 19.05 mm PH#0 screws.

  2. fmLGmtaAbeaADKVm
    fmLGmtaAbeaADKVm
    xOAjlvxb6HxTCyG6

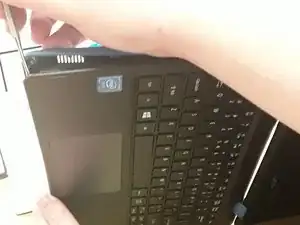

    • At the left front corner of the laptop, under the intel sticker, press the sharp end of a metal spudger between the keyboard and the back cover to pry it apart.

    • It is important to ground yourself to avoid static.

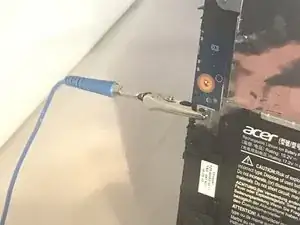

    • Put on an anti-static wrist strap and connect the metal clip at the other end to any piece of metal you can identify on the laptop.

  3. kBSkkLFkVERF1F46
    kBSkkLFkVERF1F46
    uQpt3xc33iQuvSrP
    IW1FhMvhCU1uSxuo

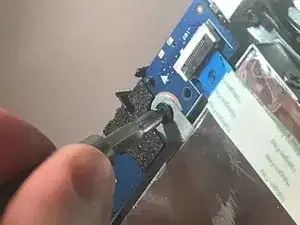

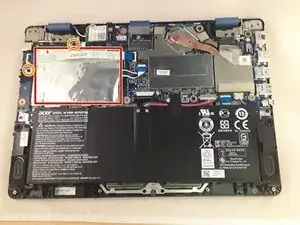

    • Locate the big silver aluminum square on the left side of the back of the laptop. This is the hard drive to the computer.

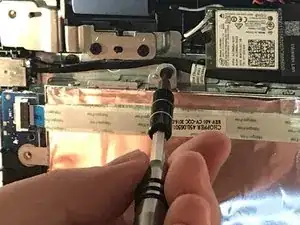

    • Remove the two 12.7 mm PH#0 screws.

  4. fXurkcICKawSqgTn
    fXurkcICKawSqgTn
    mByGPcQGqFG3sPov
    rZtwDXGLBJYQmIG5

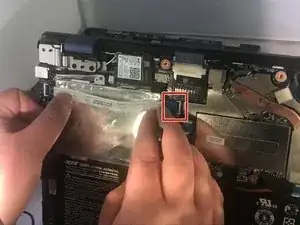

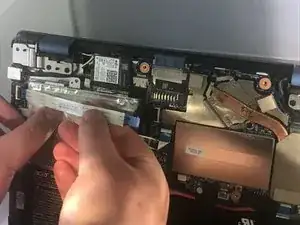

    • Lift and disconnect right flap of the white ribbon that runs across the hard Drive.

    • Detach the cable that is located right where you disconnected the ribbon.

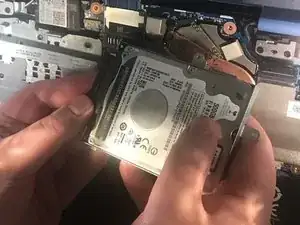

    • Remove the Hard Drive

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jacqueline Englehardt

Mitglied seit: 27/09/17

413 Reputation

4 Kommentare

What do I do if there isn’t a hard drive in there? It says it has a 36GB SSD eMMC Form Factor internal storage, but the HDD rack/mount is empty.

Thanks!

Dan -

Okay………………after I perform the above steps, what happens? Power up and all is well? How much “HDD” space do I then have? There is no parts list. Will I need some sort of external drive? When I finish this, I would like to have at least 80G of storage space. More if possible. Please reply to <<n4ctf@hotmail.com>> Thanks to all

Boog Moore -

Opened the computer and found all of the above. I have a 500Gb SSD purchased from Crucial Memory. There is no way to connect this SSD as it stands now. Do I need to purchase some kind of adapter? Is there a connector to be soldered to the mother board? I upgraded the RAM to 8Gb. TREMENDOUS improvement. Even tried installing apps/programs to an external drive. It all worked OK but not that much of an increase in internal storage. I don’t need a bunch of statements. I need a solution or direct me to where I can obtain a fix. Thanks

Boog Moore -

For the unlucky users (like me) with the eMMC version, you can install a SATA drive only if you solder the missing components on the motherboard and buy the missing SATA cable. I found this article where they successfully added a HD, with the parts list. Only 4 capacitors and a connector is missing, but they are SMD ones, good soldering skills needed.

wfbook -
