Einleitung

Here is a guide to help you remove sticky hinges.

  1. OADXYlr2ddfgPWXW
    OADXYlr2ddfgPWXW
    MZFvpCxTtsyHwfiW
    • Flip the laptop on to its front, so that the back is facing up

    • Unscrew the twelve 19.05 mm PH#0 screws.

  2. fSEgWIu2ogWCspqN
    fSEgWIu2ogWCspqN
    AXmeNwFnYhbWcxVX
    • At the left front corner of the laptop, under the intel sticker, press the sharp end of a metal spudger between the keyboard and the back cover to pry it apart.

  3. yOK5jVDMraD3kmXa
    • Connect the clip of an anti-static wrist strap to any piece of metal on the computer.

    • It is important to ground yourself to avoid static.

  4. QidLH1fRwfhqo2Ts
    QidLH1fRwfhqo2Ts
    pv1kJNPxEGrp2fVt
    • Locate the large black rectangle at the bottom . This is your battery.

    • If you see that your battery is oozing or bulging, step away from the device.

    • Remove the black electric tape that is on the rainbow colored cable at the top of the battery.

    • Gently pull on the cable to disconnect.

    What are those 2 button.

    https://ibb.co/m9mv0wg

    jer_l_ -

  5. 6FRtUWU2LPYWIRcG
    6FRtUWU2LPYWIRcG
    Sqwr6vBjFYJJKUnf
    xIOceyUX4wmDxqJn
    • Remove the two 12.7 mm PH#0 screws. One of these screws is located on the top of the left side of the battery and the other is located in the top of the right side of the battery.

    • Remove the battery

  6. mFrB2nJhjrhSLsPD
    mFrB2nJhjrhSLsPD
    XALK4teRyQr4Ndpt

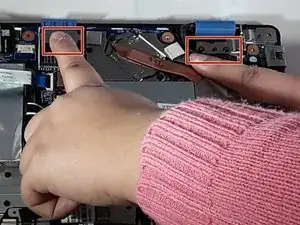

    • Located at the top are two silver plates that connect to the laptop screen. These are your hinges.

    • Remove the two 12.7 mm PH#0 screws on each hinge.

  7. JgSAxpkx3nMgQHYG

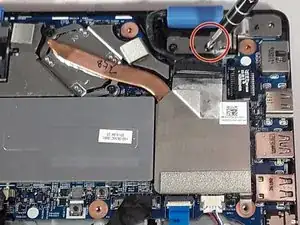

    • Unscrew the four screws with a Phillips screwdriver.

  8. 2GSYxwlGMGxTWHhD

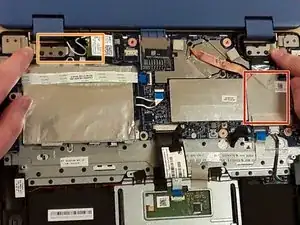

    • On the right side, locate the piece of clear tape connected to the cooling system (also called a heat sink).

    • Remove the clear tape from the cooling system.

    • Disconnect the cable.

    • Disconnect the wire located above the Hard Drive from the screen display.

  9. MkOVFrXqjI5iGfpV

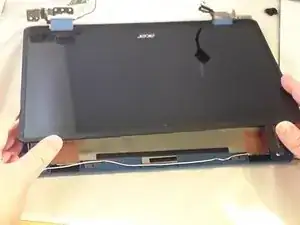

    • Insert the tip of the metal spudger at the seam to pry the screen display from the cover.

  10. dQ4UdNC1NWRpOEsG

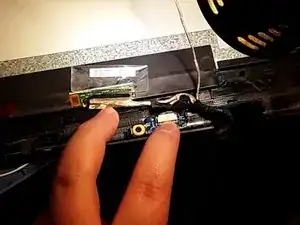

    • After the front and back of the screen are separated, look for any wires the may prevent complete separation. There are 2 wires located by the hinges.

    • Disconnect each wire and remove the tape if necessary. All screen wires tucked into the plastic part of the hinges can be exposed by pulling on them.

  11. tV3KHkVKGbHpHZdF

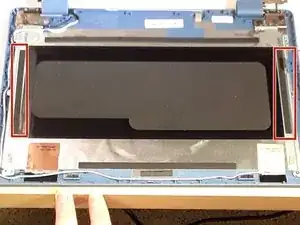

    • Locate the metal hinge on each side of the blue half of the screen.

  12. Mbh6DK4s25NQ4IS1
    Mbh6DK4s25NQ4IS1
    jFsBLYdjLvjQNjXg
    faGZ6J6iqyWgAVHX

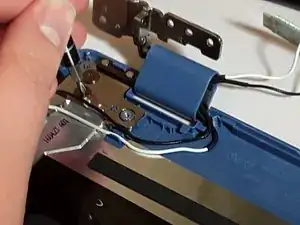

    • Remove the five 12.7 mm PH#0 screws.

  13. WvuWSXNkPQ5mjm6N

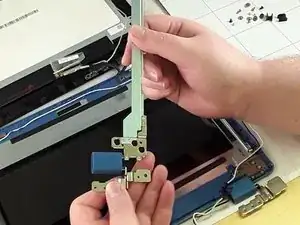

    • Pull off the blue plastic located at the top of the hinge.

Abschluss

To reassemble your device, follow these instructions in reverse order.
