Acer Aspire R5-471T-52EE Screen Replacement

Geschrieben von: Arda Cetken
  • Kommentare: 0
Acer Aspire R5-471T-52EE Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide aims to help the user to remove and replace the screen/touch screen on the Acer Aspire R5-471T-52EE. The screen may fail for many reasons and may need to be replaced in order for the user to properly use the Acer Aspire again.

  1. 15IxXRonUMrkauJG
    15IxXRonUMrkauJG
    sswtIx5XC6eXnitm

    • Unplug the laptop and turn it off.

    • Remove the twelve 3mm screws using the Phillips #1 screwdriver.

  2. nhKrurEWvyDxSDEZ

    • With the hinges of the laptop pointing away from you, gently begin to pull on the portion between the two hinges towards yourself until you feel the cover pop off.

    • Remove the back cover from the device.

  3. YdvmvbhZ4pUi44qK

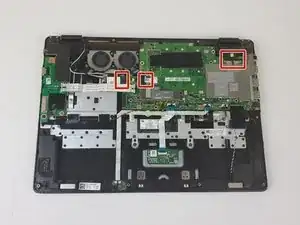

    • Disconnect the three wires from the motherboard that connect to the screen.

    • Be very gentle when removing these wires as the connections with the motherboard are delicate.

  4. gldjrBSj4ViXfI2H

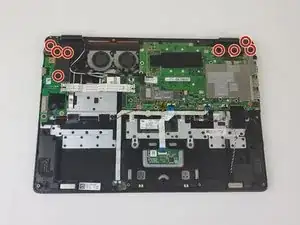

    • Remove the eight 3mm screws on the hinges using the Phillips #1 screwdriver.

    • Now that the hinges have been unfastened, carefully separate the screen and screen casing from the other half of the computer.

  5. Ni1UshTyMJ3XfmBN
    Ni1UshTyMJ3XfmBN
    jmsEDtPOKYEkwZCA

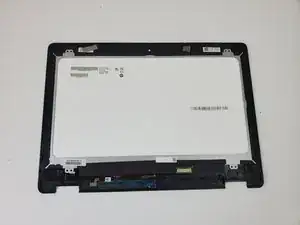

    • Using a spudger or an opening pick, pop open the case holding the screen. Follow the line where the two pieces of the case meet all around the screen.

    • Remove the display assembly from the device.

Abschluss

To install the screen and reassemble your device, follow these instructions in reverse order.
