Einleitung

The fan in your Acer Aspire R5-571T-57Z0 is what is used to prevent the laptop from overheating. There are many components within the Acer Aspire R5-571T-57Z0 that require lots of energy to operate and, as a result, generate lots of heat. The fan’s job is to prevent the laptop from getting hot enough to cause damage.

If your laptop feels hotter than normal, is emitting a burning scent, or suddenly shuts down, your fan may be damaged and require replacement. Before continuing with this guide and replacing your fan, make sure that the inside of your laptop is clean. If dust gets piled up inside the laptop, the heat generated may get trapped and result in the same symptoms previously mentioned. Our guide will show you how to access the inside of your computer to examine whether or not it needs to be cleaned. Consult our troubleshooting guide for more information.

This guide will show you how to replace the fan in your Acer Aspire R5-571T-57Z0. Before starting this guide, make sure to power off your computer and disconnect it from any external devices. Once these steps are taken, replacing your fan will be a simple process.

  1. mJ6m3kAwFwtDGUYf
    • Remove twelve 4.0 mm screws from the back of the laptop using a Phillips #00 screwdriver.

  2. YSppCjlx1UIZpvWd
    YSppCjlx1UIZpvWd
    TdybJUPVubBfymOF
    • Use a nylon spudger to pry open the back of the laptop and remove it.

  3. 23E4yIgvj5Q5FJNI
    23E4yIgvj5Q5FJNI
    62SgYMXLDRnq64hN
    • Remove the three 4.0 mm screws from the battery using a Phillips #00 screwdriver.

    • Unplug the cable connected to the RAM.

    • Carefully remove the battery.

  4. iquTyDxD2XGSDFMB
    iquTyDxD2XGSDFMB
    PEUCXtTGP6AOkyKI
    FFuUZHNDfajtQPZh

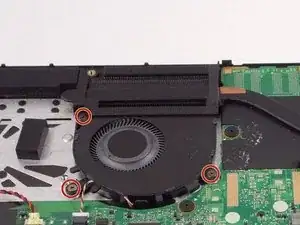

    • Remove the seven 4.0 mm screws attaching the fan to the laptop using a Phillips #00 screwdriver.

  5. CtMRDmKmlWXqU3T1
    CtMRDmKmlWXqU3T1
    2etOecj5uqqvwCPH
    xgHCMZ6rUtx1swQt

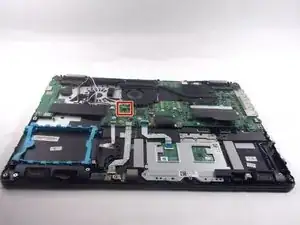

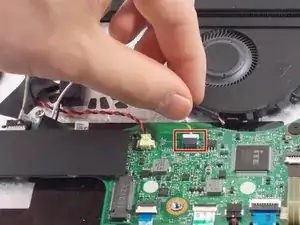

    • Detach the fan cable from the motherboard.

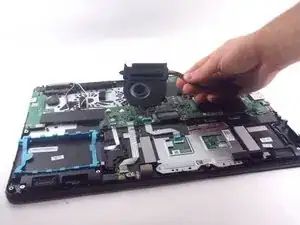

    • Remove the fan from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
