Einleitung

The RAM (or memory) in your Acer Aspire R5-571T-57Z0 is what is used to temporarily store data while the laptop is running. It will hold application data as well as file data as your computer reads and writes to various files.

If you are receiving frequently memory warnings or having difficulty running software, there may be an issue with your RAM. Before continuing with this guide and replacing your RAM, verify that you do not have excessive software running on your computer. This can cause memory to fill up and will drastically decrease the speed of your computer. Consult our troubleshooting guide for more information.

This guide will show you how to replace the RAM in your Acer Aspire R5-571T-57Z0. Before starting this guide, make sure to power off your computer and disconnect it from any external devices. Once these steps are taken, replacing your RAM will be a simple process.

  1. mJ6m3kAwFwtDGUYf
    • Remove twelve 4.0 mm screws from the back of the laptop using a Phillips #00 screwdriver.

  2. YSppCjlx1UIZpvWd
    YSppCjlx1UIZpvWd
    TdybJUPVubBfymOF
    • Use a nylon spudger to pry open the back of the laptop and remove it.

  3. 23E4yIgvj5Q5FJNI
    23E4yIgvj5Q5FJNI
    62SgYMXLDRnq64hN
    • Remove the three 4.0 mm screws from the battery using a Phillips #00 screwdriver.

    • Unplug the cable connected to the RAM.

    • Carefully remove the battery.

  4. utGLjatJVYPT1KIB

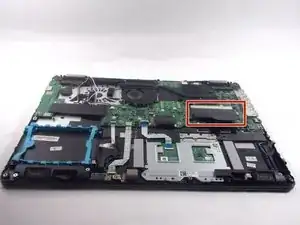

    • Lift up the black flap covering the RAM.

  5. LkcjEiSsQrZwvacy
    LkcjEiSsQrZwvacy
    1byBZNQ5r4wR1aNI

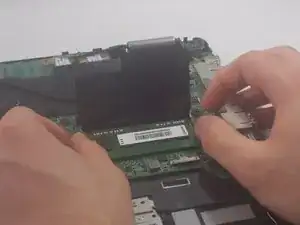

    • Push the pins outward on each side of the RAM.

  6. YOSbKZ2MG2QYHGD5
    YOSbKZ2MG2QYHGD5
    rZASYaUFqULyZsSM

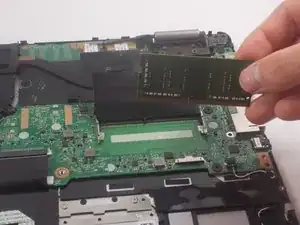

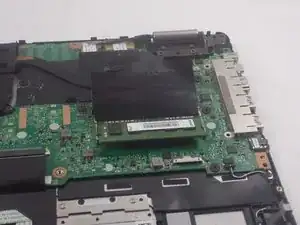

    • Take out the RAM by lifting it upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
