Acer Aspire R7 AC Socket Replacement

Geschrieben von: Andrew Rodiek

Kommentare: 2

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

Werkzeuge

Schritt 1

Shut down the laptop and disconnect the power cord.
Failing to disconnect or shut down the laptop could result in damage to the laptop or a shock hazard.
Turn the laptop over.

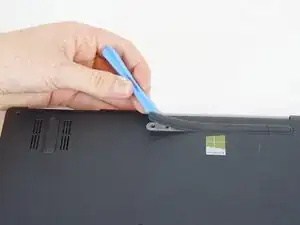

Use the blue plastic opening tool to carefully remove the rubber pad which covers the one remaining screw.

Picture shows the rubber pad removed but srew to be removed is not indicated

Anthymoine - 30/06/20

Schritt 2

Remove seven 10 mm T7 screws.
Remove four 6 mm T7 screws.
Use the blue plastic opening tool to carefully remove both rubber pads which cover the four remaining screws.

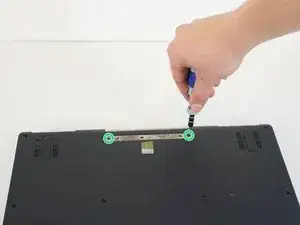

Remove the remaining four 10 mm T7 screws.

Step 2 is missing the 1 (10mm T-7 ) screw that is under a rubber pad in the bottom middle of the laptop. The picture shows this pad and screw already missing. Note the silver color instead of the black color of the rest of the bottom of the laptop.

Daniel Flynn - 13/09/16

Schritt 3

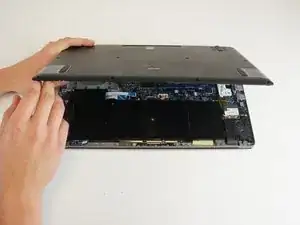

Carefully lift the cover upwards.
If the cover seems stuck, use a spudger tool to pry the sides.

Schritt 4

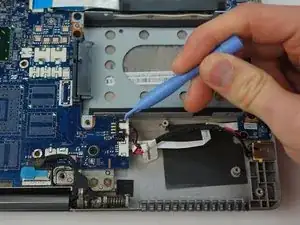

Locate the AC Socket ribbon connector
Loosen the ribbon connector using the plastic opening tool
Pull the ribbon connector away from the motherboard

Schritt 5

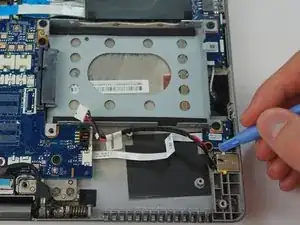

Use the plastic opening tool to pry up on the yellow tabs holding the Socket in place
There is two sided tape holding this component to the case

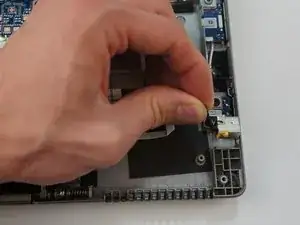

Once the tape on the Socket is loose, pull up and away from the case to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
