Changing the Battery in an Acer Aspire R7 is a straightforward process if you find your computer has lost its ability to hold a charge.
The Aspire laptop battery enables the computer to work without having a power cord. It is a hardware component that is not externally accessible and requires a small amount of disassembly to replace.
The 4-cell replacement battery instructions are listed below in quick simple steps. Before using this guide make sure that the battery can no longer function in one of two ways, use a multimeter to test battery strength or check the settings on the laptop if possible.
If the battery is swollen be careful and proceed with caution and take appropriate precautions.
-
-
Remove seven 10 mm T7 screws.
-
Remove four 6 mm T7 screws.
-
Use the blue plastic opening tool to carefully remove both rubber pads which cover the four remaining screws.
-
Remove the remaining four 10 mm T7 screws.
-
-
-

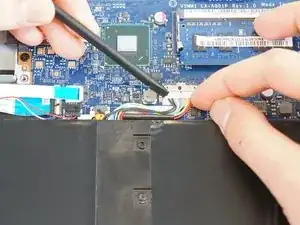

Locate the battery ribbon connector
-
Remove the ribbon cable attaching the battery to the motherboard by carefully pulling it outwards
-
-
-

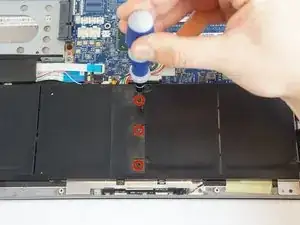

Remove the three 4.5mm #00 Phillips screws attaching the battery to the motherboard
-

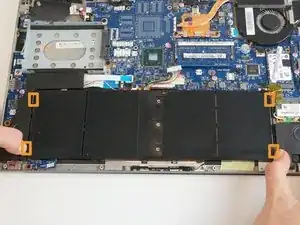

Push the 4 retaining clips away from the battery
-

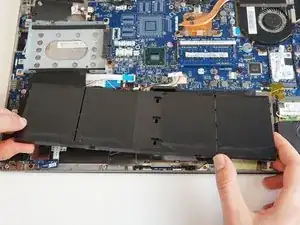

Carefully lift the battery from the motherboard
-
To reassemble your device, follow these instructions in reverse order.
