Acer Aspire R7-371T-72CF Battery Replacement

Geschrieben von: Dylan Meintser
  • Kommentare: 0
Acer Aspire R7-371T-72CF Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will walk you through how to replace a dead or dying battery in your Acer Aspire R7-371T-72CF.

  1. PHafwFbRgeMxKfHI
    PHafwFbRgeMxKfHI
    HirOfAQtica5YJDY

    • Turn off your laptop and disconnect the power adapter.

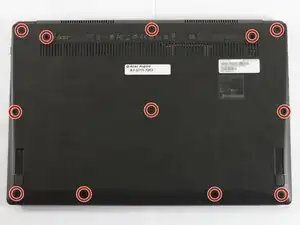

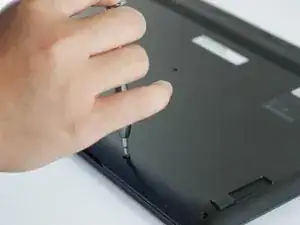

    • Locate and remove all 12 Phillips #00 6mm screws on the backside of the laptop.

  2. ESMQet6ahK1lNpJX

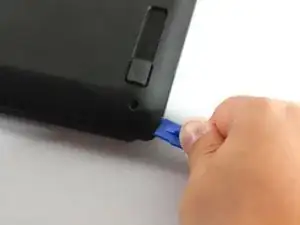

    • Use a plastic opening tool to carefully remove the back panel.

  3. Tn3VI6X1pq3ZXXyV
    Tn3VI6X1pq3ZXXyV
    SZ5OhlXWMCqKBLYL
    UM25ASwhxKdICJyU

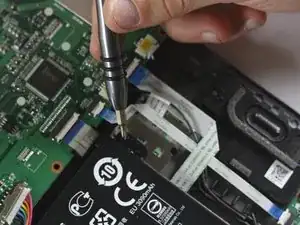

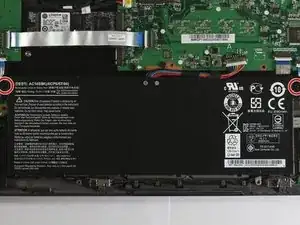

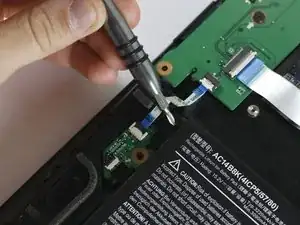

    • Remove the Phillips #00 5mm securing screws using your screwdriver.

  4. luQOTXarCfpCwwOu
    luQOTXarCfpCwwOu
    eEdjITbMxhR11q3O

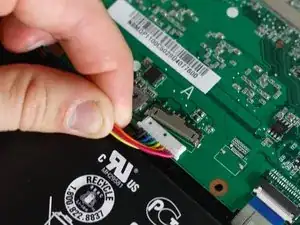

    • Disconnect the battery from the motherboard by simply pulling the wires down towards the battery until the adapter dislodges.

Abschluss

To reassemble your device, follow these instructions in reverse order.
