Acer Aspire R7-371T-72CF Power Port Replacement

Geschrieben von: Ethan Frey
  • Kommentare: 4
Acer Aspire R7-371T-72CF Power Port Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If there is an issue with the charging port on your Acer Aspire, there might be an issue with the power connector. If your laptop is not charging or is charging irregularly, replacing the power connector might help alleviate these issues.

  1. IABibi1nxS31nNDy
    IABibi1nxS31nNDy
    ATPWDiZp15RJjXGR

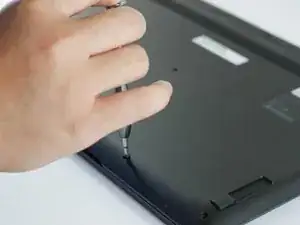

    • Turn off your laptop and disconnect the power adapter.

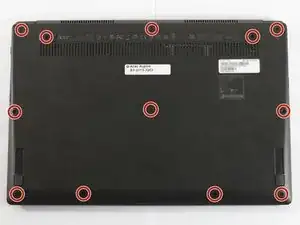

    • Locate and remove all 12 Phillips #00 6mm screws on the backside of the laptop.

  2. XxRmqCqRPxGB3ZPv

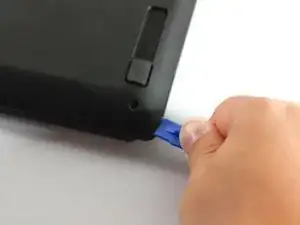

    • Using your prying tool, carefully remove the back panel.

  3. Zmk3MBpFKxiJsyFS
    Zmk3MBpFKxiJsyFS
    icN2nEw1rK6tPAjD
    gFgwg5iyNun53K2S

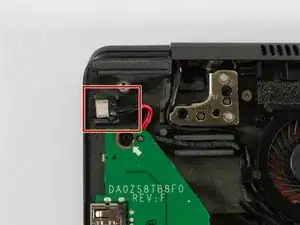

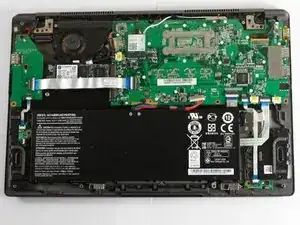

    • Locate the power connector, as shown on the left.

    • The power connector will be in the same location as where you normally plug the charger into the laptop to charge your device.

  4. WGBMRHZU33Gq4m6D
    WGBMRHZU33Gq4m6D
    q1R2RH3IiKMRhSxV
    aCdpiEhRGLhupnFg

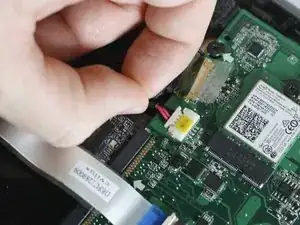

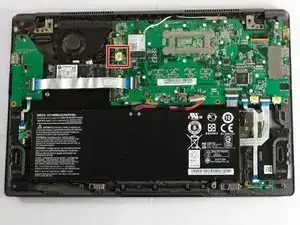

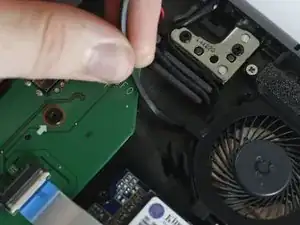

    • Disconnect the wiring from the motherboard, and pull out the rest of the wire carefully.

    • Make sure the wire is not caught on anything before pulling.

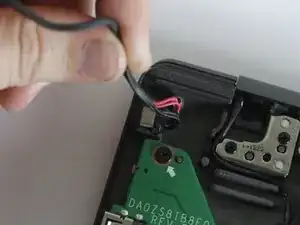

  5. AJuMZaW1N3qHqXW1

    • Pull out the power connector by pulling upwards on the wires.

    • This may require a small amount of force, but should pop out with some pressure.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ethan Frey

Mitglied seit: 28/09/17

117 Reputation

4 Kommentare

What’s the part number for the power jack cable, and who sells it?

AcerFan -

50.mqpn7.001 (SIQDD0ZS8AD001)

I found it here: https://www.itpartsource.com/50MQPN7001-...

Jorge Prado -

What model is this? Is this the older (~2015) model with the small cylindrical charging port?

Sarah -

The associated part id numbers for the Acer R7-371t 45W DC Jack Cable are:

50.MQPN7.001

SIQDD0ZS8AD001

Unfortunately, I have found this part impossible to find in stock at any source.

rosemank -
