Acer Aspire R7-371T-72CF Wifi Chip Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to improve your wifi signal by replacing a weak or broken wifi chip.

  1. cqiBi1Tf2WmYRfNI
    cqiBi1Tf2WmYRfNI
    fBoOPIRq4BFRrJ2f

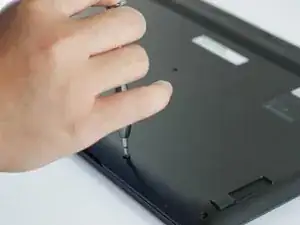

    • Turn off your laptop and disconnect the power adapter.

    • Locate and remove all 12 Phillips #00 6mm screws on the backside of the laptop.

  2. kZRDSkXAuXZyglKE

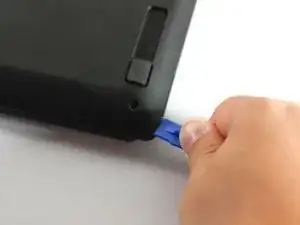

    • Using your prying tool, carefully remove the back panel.

  3. G1KdMbAZ1QpaxOZ1
    G1KdMbAZ1QpaxOZ1
    BmIe66q4RMHyXwnT
    SQQqywMCJJcQqUOM

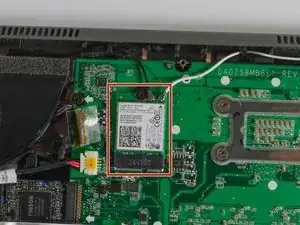

    • Locate the wifi chip, as shown to the left.

    • The chip can by identified by the white and black wires connected to it, as well as a single screw holding it in place.

  4. k3YZG155EtrSiFjl
    k3YZG155EtrSiFjl
    HsqhUUBsmnInIq2l
    vBdihDn6c643UNjL

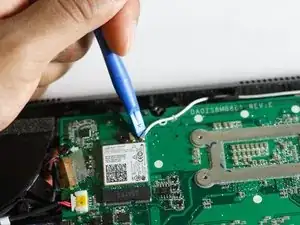

    • Locate the 2 antenna wires connected to the chip.

    • One is black, and the other is white.

    • Use a spudger or plastic opening tool to carefully disconnect the wires from the chip by prying upwards.

    • The connectors 'click' into place, like a button.

  5. XOR2UBoIEynoC126
    XOR2UBoIEynoC126
    aGZWVg6H4XNcgcLM

    • Remove the Phillips #00 6mm securing screw using your screwdriver.

  6. LbtDtBgjEGJJabNr

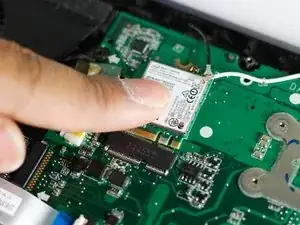

    • Remove the chip by pulling towards the edge of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
