Acer Aspire R7-572-6423 RAM Replacement

Geschrieben von: Evan Casey
  • Kommentare: 0
Acer Aspire R7-572-6423 RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

RAM, or random-access memory, is an important component to keep your computer running smoothly. Occasionally, RAM can wear out or become unseated, and need to be replaced.

  1. lKfZMaPTVwXPJuQh

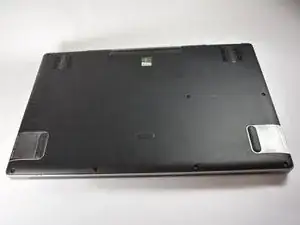

    • Turn off the laptop and disconnect the power adapter before attempting this guide. Failure to do so can result in a shock hazard.

  2. CXYKhxZgFHUSaVPR
    CXYKhxZgFHUSaVPR
    cV1YDY4YuKfoPjsc
    CBIZxuSDIrouPsuM

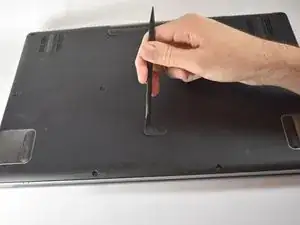

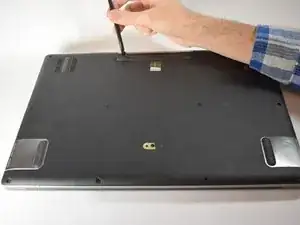

    • Remove the top and middle grips that conceal 3 additional screws.

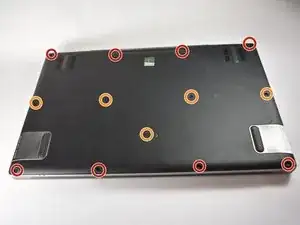

    • Remove the (8) 10mm T9 screws.

    • Remove the (5) 6mm T9 screws.

  3. FIQbVPKHYueumq6J

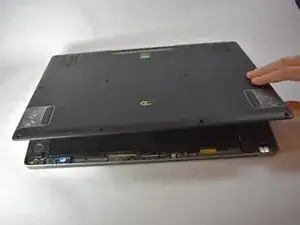

    • Remove back panel.

  4. C1pcfxP5T14MRfk5
    C1pcfxP5T14MRfk5
    MRuGFGSDNLR45uXX

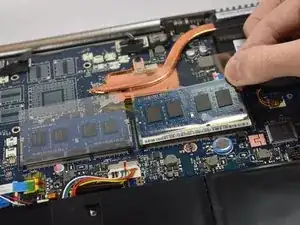

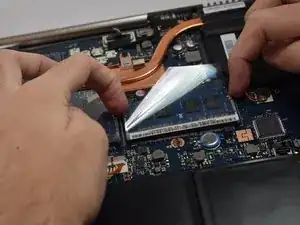

    • Press in on the release levers on either side of the stick of RAM.

    • Carefully lift and remove the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
