Einleitung
Speakers are a common point of failure for the Acer Aspire R7. If your audio sounds distorted, tinny, or isn't playing at all, consider replacing your speakers following this guide. Be very careful not to damage the speaker cable connections when disassembling the device.
Werkzeuge
-
-

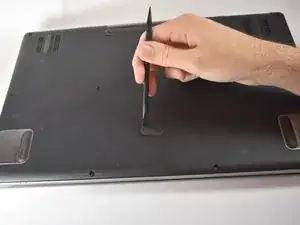

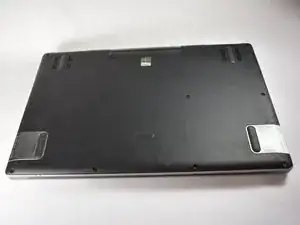

Remove the top and middle grips that conceal 3 additional screws.
-

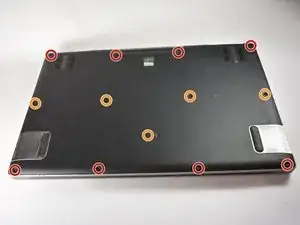

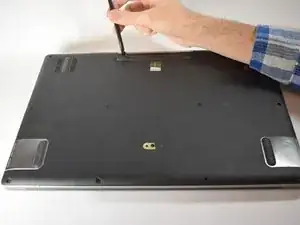

Remove the (8) 10mm T9 screws.
-

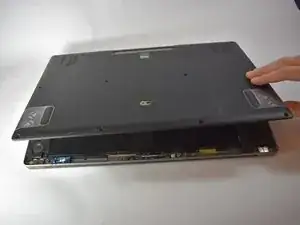

Remove the (5) 6mm T9 screws.
-
-
-

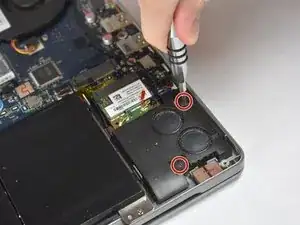

Unscrew the (2) 3mm Philips #0 wide head screws.
-

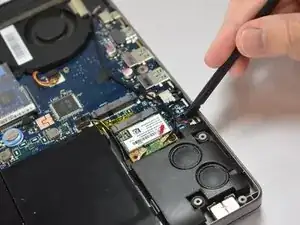

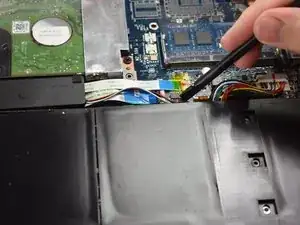

Carefully disconnect the speaker connection.
-

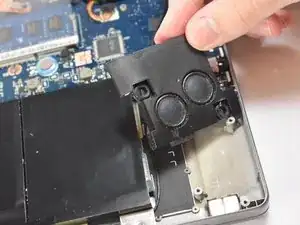

Remove the speaker.
-
-
-
Disconnect the speaker from the main board.
-

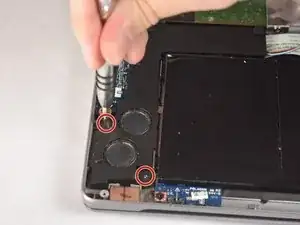

Unscrew the (2) 3mm Philips #0 wide head screws.
-

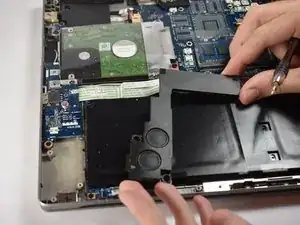

Remove the speaker.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
