Einleitung
This guide will walk you through removing the keyboard. The keyboard may need to be removed if it is damaged, or simply for easy access to clean.
-
-
Remove the 12 5mm Phillips #00 screws.
-

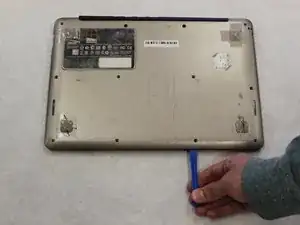

Use a plastic opening tool to gently pry open the back panel.
-

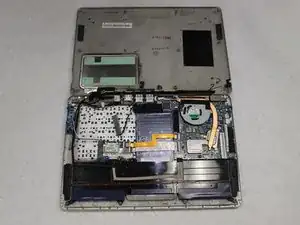

Gently lift up the back panel, exposing the internals of the laptop.
-
-
-

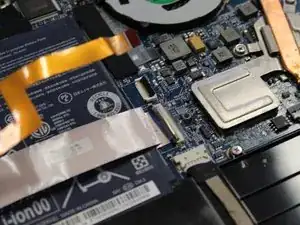

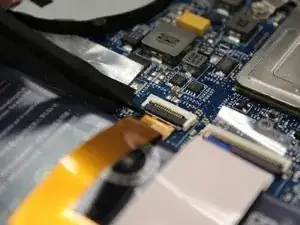

Remove the motherboard connector cables by gently lifting the black latch that clamps them in place with a spudger or simply pull the connector from the port.
-
-
-

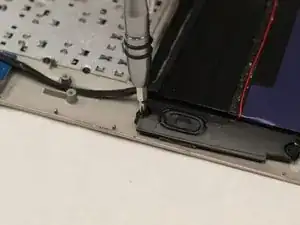

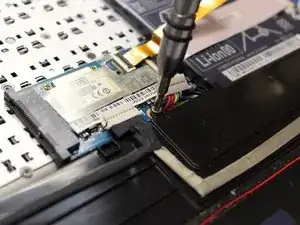

Remove the 5 5mm PH0 screws holding the motherboard in place.
-

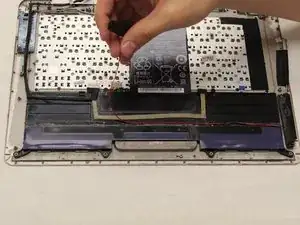

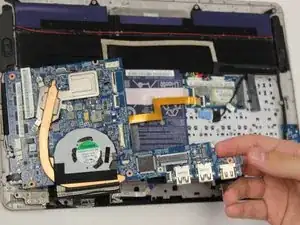

Gently remove the motherboard from the chassis.
-
-
-
Gently remove the speakers. Note that the wire connecting them may be lightly glued down. If so, gently pry up.
-
-
-

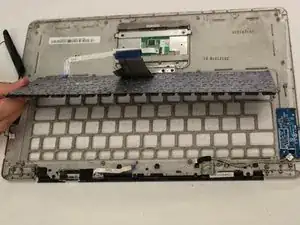

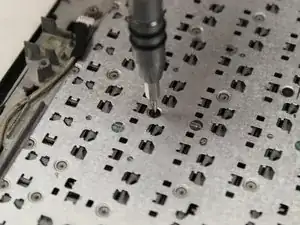

The 30 1mm PH000 screws holding the keyboard in place will be distributed all over the back.
-

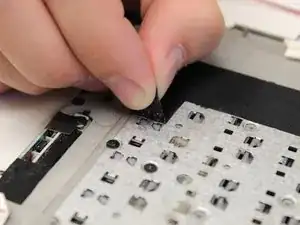

You will need to gently pry up the black tape to expose the remaining screws.
-
To reassemble your device, follow these instructions in reverse order.
