Einleitung
This guide will be used when a battery will not charge when connected to a charger. The battery is connected to many wires, so when disconnecting wires be cautious as the wires could become damaged and will also need to be replaced.
Werkzeuge
Ersatzteile
-
-

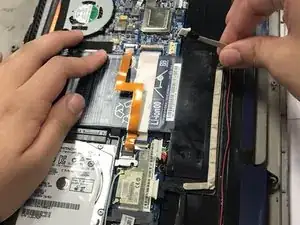

With the Phillips #1 screwdriver, remove the two 5mm screws located on either side of the battery.
-
-
-

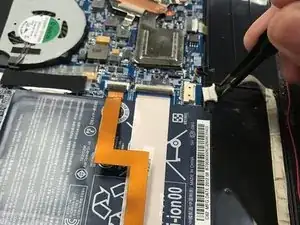

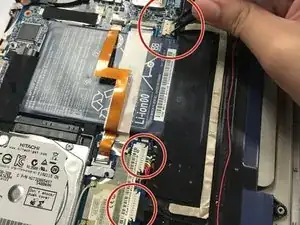

Unplug the three white plugs from their sockets using tweezers by pinching the plugs and pulling them outwards.
-
-
-
Pull upwards on the plugs located on top of your battery until they have completely come off.
-
-
-
Remove the electrical tape holding down the battery by peeling it upwards.
-

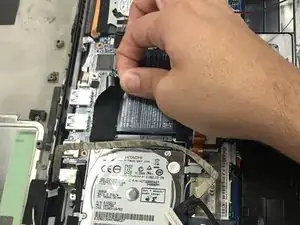

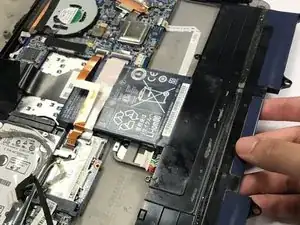

Grab the battery from the bottom and slide it out towards the direction of the bottom of the battery.
-
To reassemble your device, follow these instructions in reverse order.
