Acer Aspire S3-391-6046 Fan Replacement

Geschrieben von: Connor Talbot
  • Kommentare: 0
Acer Aspire S3-391-6046 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

If your Acer Aspire S3-391-6046 ultrabook is overheating, it might be a problem with the fan assembly. This is a guide for how to remove and replace it.

  1. qJSLTwyPrLZkSH3F

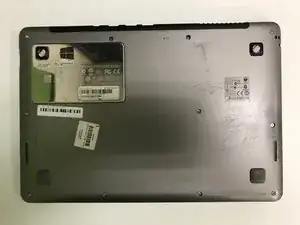

    • Place laptop upside down.

  2. F1C3UWTDKkSUPZpU
    F1C3UWTDKkSUPZpU
    DNRCPLWMpXAvgk4D

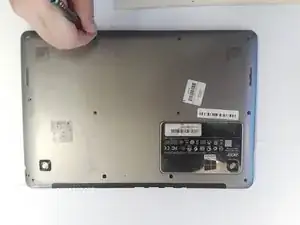

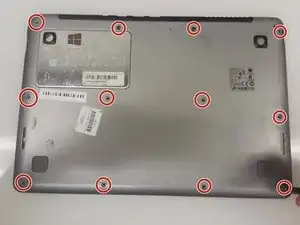

    • Remove the twelve 5mm screws with a Phillips #1 screwdriver.

  3. Jjr1IZFqVhriCtmq

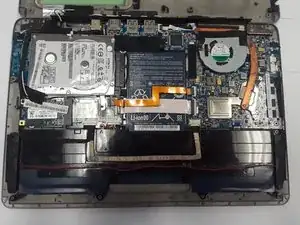

    • Lift cover upwards away from you.

  4. KMs5v2OasCrwFhKO

    • Unscrew the three screws with a Phillips #0 screwdriver.

  5. ogOHNLtTGsbQhIvV

    • Use either your hands or the tweezers to gently peel back the tape.

  6. eIoFttnxToGnGLK4
    eIoFttnxToGnGLK4
    6CXXj5ZiZkH1bVUU

    • Do not pull anything by the wires.

    • Use the tweezers to gently pull the small black plug out.

    • After the plug is out, you should be able to pull the fan assembly out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
