Einleitung
This repair guide will be used to replace a broken screen or a faulty screen that does not show visuals. Screens are made of glass which is fragile, so handle the entirety of these guides with care in order to not damage the replacement screen.
Werkzeuge
Ersatzteile
-
-

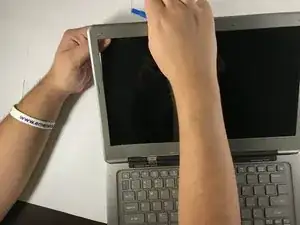

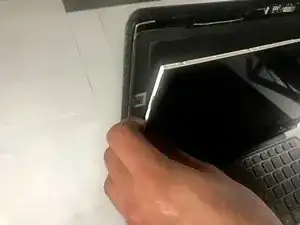

Slide the plastic opening tool underneath the frame of your device.
-

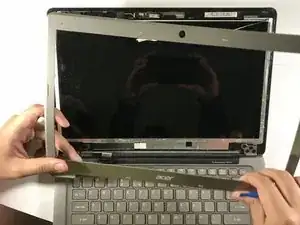

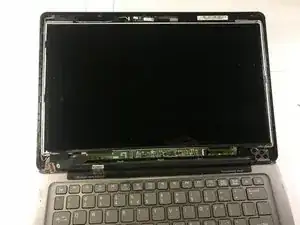

Slide the plastic opening tool all around the frame until the entire frame becomes loose and comes off.
-
-
-

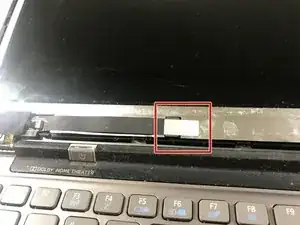

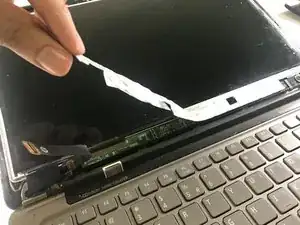

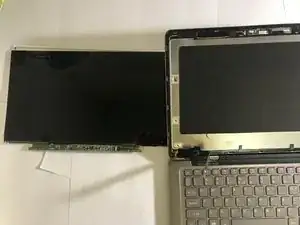

On the bottom left of the screen there is a black cable with a piece of white tape over it. Remove the white tape by peeling it off.
-

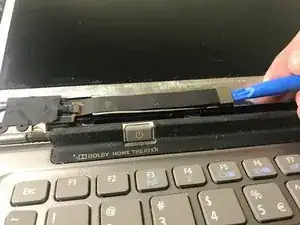

Slide your opening tool underneath the front of the cable, and pull the cable upwards to disconnect it from its socket.
-
To reassemble your device, follow these instructions in reverse order.
