Acer Aspire S7-392-6484 Solid State Drive Replacement

Geschrieben von: Nicholas Wise
  • Kommentare: 0
Acer Aspire S7-392-6484 Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

How to replace the solid state drive in an Acer Aspire S7-392-6484.

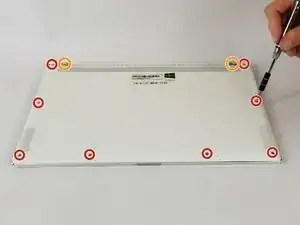

  1. LiZwAShNXxKTV4EH
    LiZwAShNXxKTV4EH

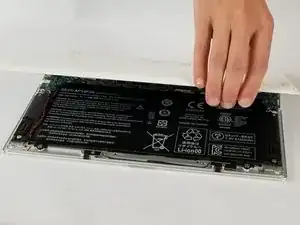

    rCMXjb5MJjJ2fmii

    • Remove the back panel by unscrewing all marked 3mm screws with a T6 Torx screwdriver.

    • Remove these screws with a T6 Torx screwdriver, but note that these feet screws are 4mm in length.

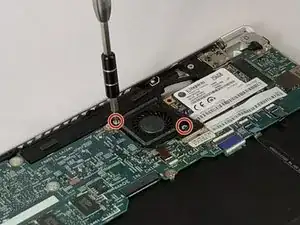

  2. KZnaTDithlHMgW4b
    KZnaTDithlHMgW4b

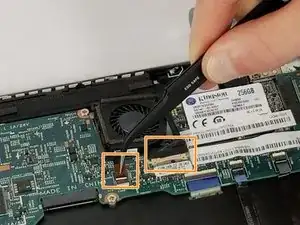

    5F4gSLahyS423MMY

    • Unscrew the marked 2mm screws with a Phillips #01 screwdriver.

    • Remove the fan by disconnecting the marked tabs.

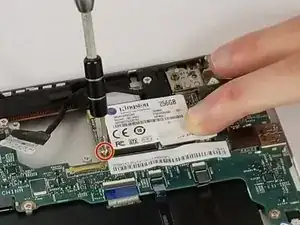

  3. gB31TZKWxbrThk4A

    • Remove the marked 2mm screw with a Phillips #01 screwdriver.

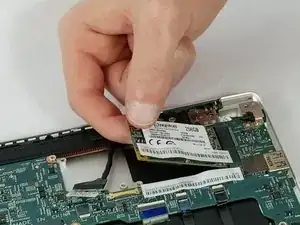

  4. sENjDCXpQogTQJHo

    • Remove the hard drive by pulling it away horizontally from its connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
