Einleitung
If your device can't power on or has trouble retaining charge, you may need a new battery. Use this guide to replace the battery on your device.
Werkzeuge
-
-

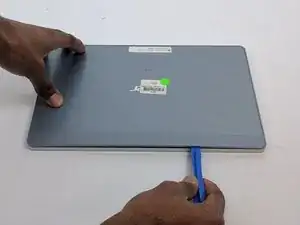

Wedge your plastic opening tool into the crevice on the volume rocker and pull down like a lever to create space.
-

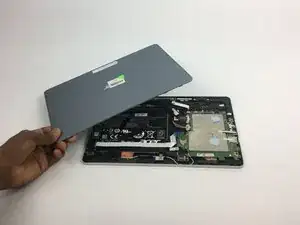

Slide the plastic opening tool along the crevice to separate the back plate.
-
-
-

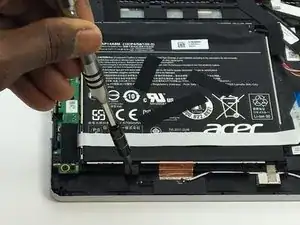

Use your screwdriver with the Phillips PH000 attachment to unscrew the single 4mm screw that holds the battery to the base plate.
-
-
-

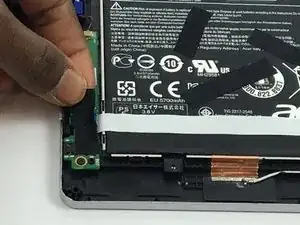

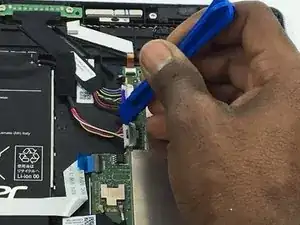

Gently slide the plastic opening tool under the black clip that is attached to the audio ribbon cable.
-

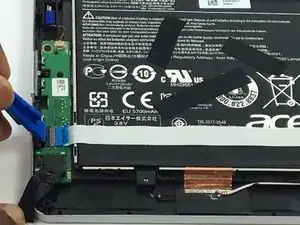

Pull down on the plastic opening tool like a lever to flip the black clip and remove the ribbon cable.
-
-
-

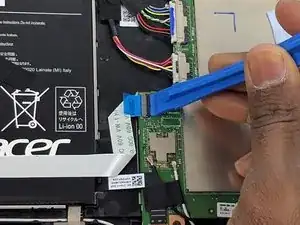

Use a plastic opening tool to flip up the black clip on the ZIF connector.
-

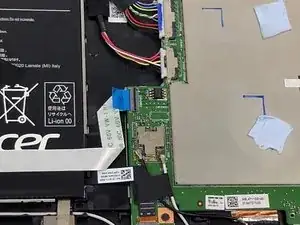

Once the black clip is flipped up, it is safe to remove the audio ribbon cable.
-
-
-

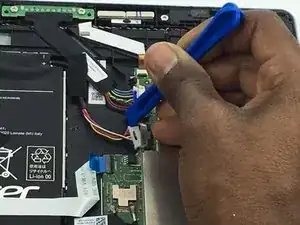

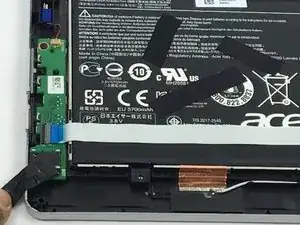

Use a plastic opening tool to gently push the edge of the sliding bundle cable connector out.
-

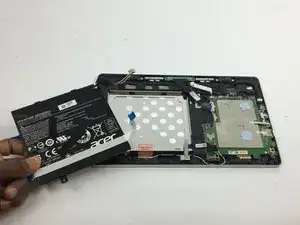

Remove the battery.
-
To reassemble your device, follow these instructions in reverse order.
