If you've exhausted every option when trying to get your device to retain charge or turn on, the motherboard may be the culprit. Use this guide to remove and replace it.
Werkzeuge
-
-

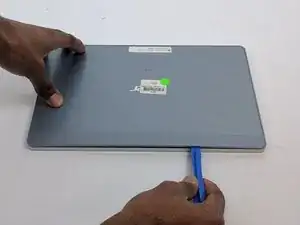

Wedge your plastic opening tool into the crevice between the volume button and casing to create space.
-

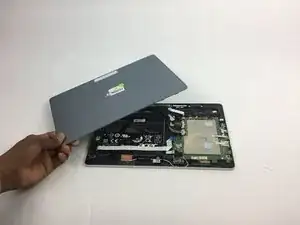

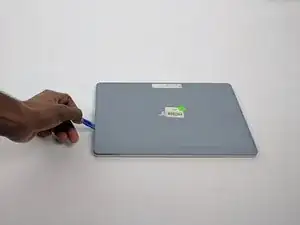

Slide the plastic opening tool along this crevice to pry apart the backing of the tablet.
-
-
-
There are four zero insertion force connectors that need to be removed.
-

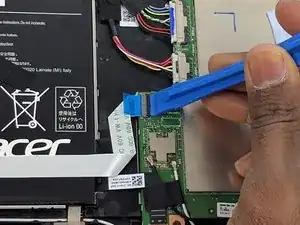

Use your plastic opening tool to flip up the black clips that secure the ribbon cables to the motherboard.
-

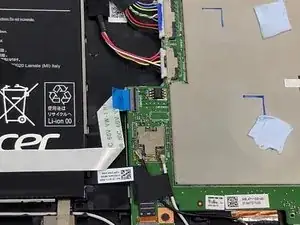

Once the clips are flipped up, the ribbon cables will be safe to remove.
-
-
-

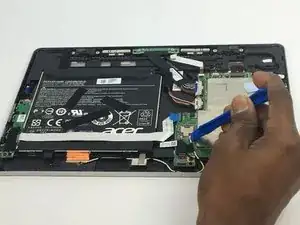

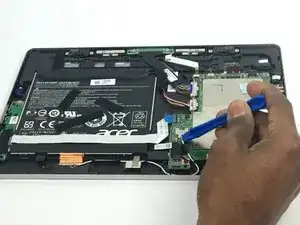

To remove the four bundle cable connectors, push against the edges of the connector to loosen it up.
-
Pull the cable away from the connector.
-
-
-
Use your screwdriver with the Phillips PH000 attachment to remove the three 4mm screws.
-

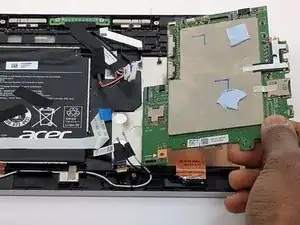

Remove the motherboard from the tablet.
-
To reassemble your device, follow these instructions in reverse order.
