Einleitung

If your trackpad is not functioning properly or responding, you may need to replace the trackpad. Before attempting to replace the trackpad, please visit the troubleshooting page and follow any recommendations. The troubleshooting page recommends that you update the trackpad drivers and attempt to disable and enable the trackpad to see if it fixes the problem. If the trackpad is still not responding, please follow the steps below to replace the trackpad.

  1. cAdebMsNFYk5roAf
    cAdebMsNFYk5roAf
    AueyPC56k52LUPmN
    xhqWlpPaicD4pDxL

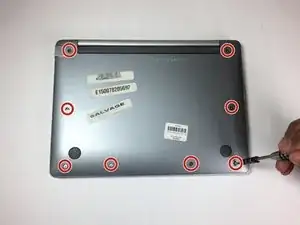

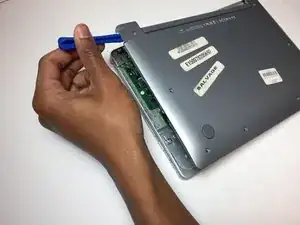

    • Remove the 8, 5.25 mm screws on the back cover using the screwdriver.

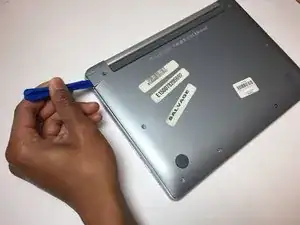

    • Insert the opening tool into the USB port.

    • Carefully remove the back cover with the opening tool.

  2. SJIOBSpMIqAJOk6Y
    SJIOBSpMIqAJOk6Y
    ZB4jOkaVPZxjsNgk
    2gPJT3xTLFbhpcUV

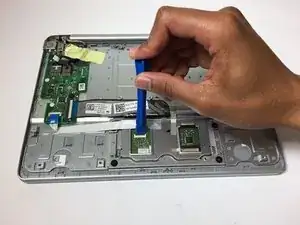

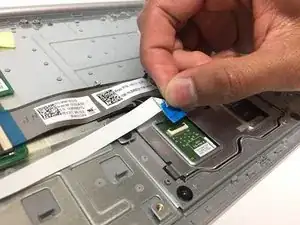

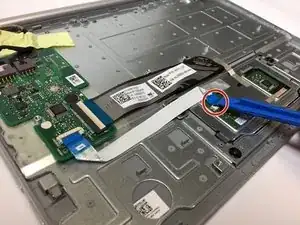

    • Lift up on the ZIF connector that secures the ribbon cable using the opening tool.

    • Pull the ribbon cable free.

  3. UOx2bTXiaRBoDXtA
    UOx2bTXiaRBoDXtA
    pNSF2tCxAHtVjUE2
    nCZ1vVqo1xDQ2GpP

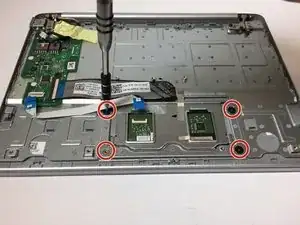

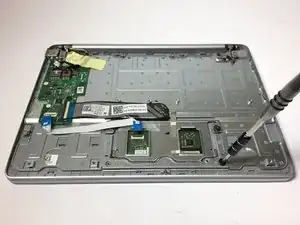

    • Remove the 4, 2.5 mm screws from the trackpad cover.

  4. lCZOJpXh2rubDAYb
    lCZOJpXh2rubDAYb
    PyWI1xjHwUf4Di4P

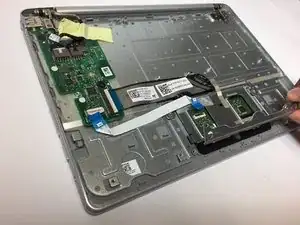

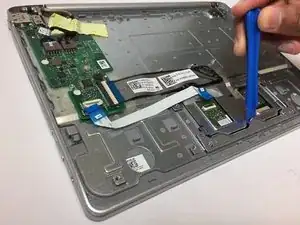

    • Remove the metal piece that secures the trackpad cover in place using the opening tool.

  5. uGfPYGFtIXtHBDQ6
    uGfPYGFtIXtHBDQ6
    dfboP4AxYbpXvWes
    L1LD6OYndDKYWpTF

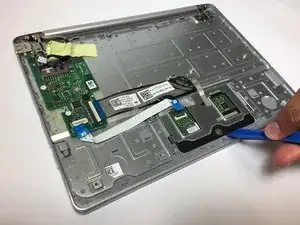

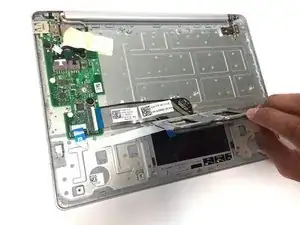

    • Remove the trackpad using the opening tool and your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
