Acer Aspire TimelineU M5-481TG Fan Replacement

Geschrieben von: Yumiko Chavez
  • Kommentare: 1
Acer Aspire TimelineU M5-481TG Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 Minuten

Einleitung

Before performing any repairs, make sure the laptop is fully powered off and disconnected from its charger. This guide will show you how to remove and replace your fan. Replacing the fan involves first removing the keyboard, battery and the motherboard.

  1. WF4cQk1wNCIiZ2YH

    • With the laptop closed and powered off, place the laptop screen side down.

    • Turn the laptop so that the hinges are closest to you.

    • Remove sixteen 6 mm screws from the bottom of the laptop with the Phillips #00 screwdriver.

  2. wfQEd4eW3m6Ccbcv
    wfQEd4eW3m6Ccbcv
    fZVeV3xjDN3UMfVf

    • Flip the laptop over and open the lid.

    • Use the plastic opening tool with the half centimeter wide tip to gently separate the bottom case of the laptop from the keyboard.

    • Potential for device damage: Do not apply too much force or you may break the clips.

    • Gently pull the keyboard upwards to a 45 degree angle.

  3. TcTCa3ICA5cUdTOJ
    TcTCa3ICA5cUdTOJ
    oAmZZ2iGfVskdvoc
    mueMhLwsxGApfYOD

    • Hold the keyboard open with one hand to extend the three cables (white, black and copper) still connecting the bottom of the keyboard to the back case.

    • Be sure you are prying up the hinged retaining flap, not the connector itself.

    • Use your fingernail to flip up the small retaining flap of each zero insertion force connector and then gently pull each ribbon cable out one at a time.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line and then close the retaining flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.

  4. 4xy2AwwqoPsi5NEu
    4xy2AwwqoPsi5NEu
    EpDwt3VM1IdbaGPU

    • Use both hands to remove the keyboard.

    • Potential for device damage: Do not pull too forcibly or you could damage your keyboard.

  5. mYjoNpIGQCGfAO4Z

    • Gently disconnect the silver cable that stretches over the battery by using your fingernail to flip up the small retaining flaps on both sides of the zero insertion force connector.

    • Potential for device damage: Be sure you are prying up the hinged retaining flap, not the connector itself.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line and then close the retaining flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.

  6. c4uWFGohhYASRClQ

    • Remove one 3 mm screw from the side closest to you on the motherboard with a JIS #1 screwdriver.

    • Remove one 4 mm screw from the right side of the motherboard with a JIS #1 screwdriver.

  7. uJMfKHMPARmHTNBD
    uJMfKHMPARmHTNBD
    A1veNTUAprADmdJa

    • Use your fingernail to flip up the small retaining flap of the zero insertion force connector and then gently pull out the silver ribbon cable.

    • Potential for device damage: Be sure you are prying up the hinged retaining flap, not the connector itself.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line and then close the retaining flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.

  8. wBvhLnG2OhkOEBbr
    wBvhLnG2OhkOEBbr
    VnMoU4RNlmGUbyit

    • Gently disconnect the six bundled cables (red, black, and green) attached to both the battery and motherboard by pinching them with your thumb and forefinger. Pull with moderate force towards the left to disconnect.

  9. ogTX22a4Nv2tnuPM
    ogTX22a4Nv2tnuPM
    ZsIJnrrCHbRILjir
    d6rRQuutwMbFPjCl

    • Gently lift up the black-covered cables that remain connected to the motherboard at the bottom left of the laptop base.

    • Move the cables toward the bottom edge of the laptop closest to you without disconnecting them.

    • Potential for device damage: Do not pull too forcibly or you could damage your motherboard.

    • Carefully lift up the motherboard and slide the battery to the left to pull it out.

    Step 9 the red arrow pointing to that cord, I'm having problems and I think that's the issue I'm having. I bumped it loose and now I cant turn on the laptop with out plugging it in. Please help me figure out what that cord does.

    Tyler Host -

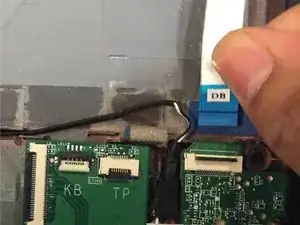

  10. fVcQVkBsU6uJbOYD
    fVcQVkBsU6uJbOYD
    SEPCaFPbesGuxwCf

    • Use your fingernail to flip up the small retaining flap of zero insertion force connector and then gently out pull the silver ribbon cable.

    • Be sure you are prying up the hinged retaining flap, not the connector itself.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line and then close the retaining flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.

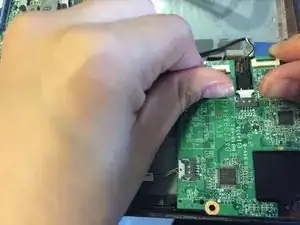

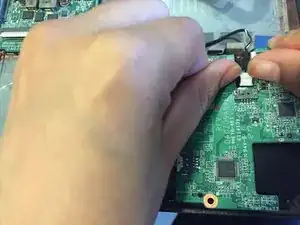

  11. uFHisscRMGcElWTC
    uFHisscRMGcElWTC
    ayyJc6EXfBbptZCv
    n2TldUqfMJvtrRjR

    • Gently use your fingernail to push the white ribbon cable away from its connector.

    • To reinstall the cable, hold it near the end and push it straight into the connector, being careful not to kink the cable.

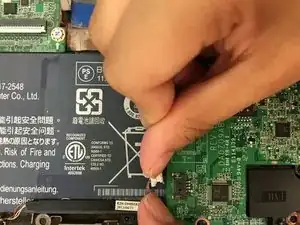

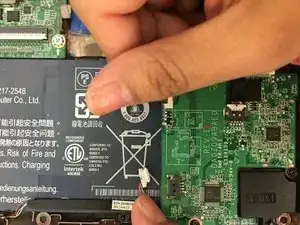

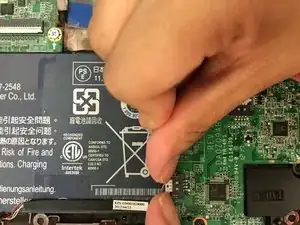

  12. UDjuA2UymZIxvDEX
    UDjuA2UymZIxvDEX
    kG2FBRdLMxSi6xEv
    eX1dwnBeOeFLnINW

    • Gently use your fingernail to push the white ribbon cable away from its connector.

    • To reinstall the cable, hold it near the end and push it straight into the connector, being careful not to kink the cable.

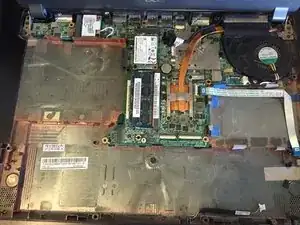

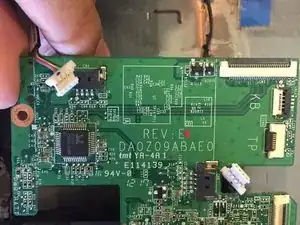

  13. JdyhNCwC4PjhRlFi
    JdyhNCwC4PjhRlFi
    YtXewNNKWQHjmIKs

    • Gently lift up the motherboard with your hands to remove it.

  14. kCWXqGRFsIphwDr6

    • For this guide you will be working on the fan in this area of the computer.

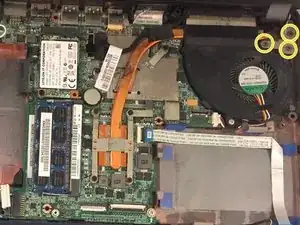

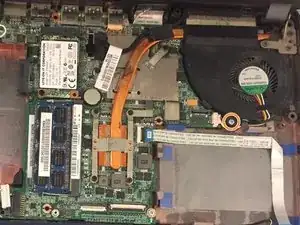

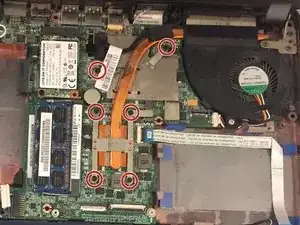

  15. CRqylGGHMLcQvmTj
    CRqylGGHMLcQvmTj
    35LAsYjHj34dZe5p
    GCBIDVEeZTNMHiii

    • Use the #J1 Phillips head screwdriver to unscrew six #J1 Phillips head screws but do not remove the screws.

    • Do careful to not remove the screws until the entire fan is taken out.

    • Use the #J1 Phillips head screwdriver to unscrew one 5mm #J1 Phillips head screw from the side of the fan closest to you.

    • Use the #J1 Phillips head screwdriver to unscrew three 7 mm #J1 screws from the top corner of fan.

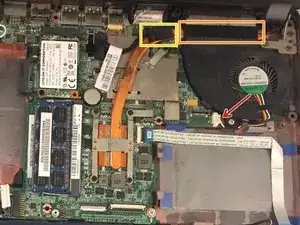

  16. rAPMJZgpSTZdpilA

    • Using your fingernails and the metal spudger's pointed end, push the white cable connector away from the port.

    • Using your fingernails, take the tape off of the top of the fan.

    • Using your fingernails, take the tape off the side of the fan.

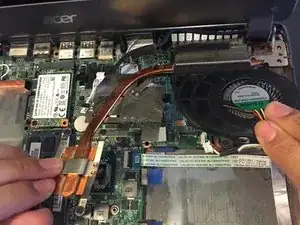

  17. 44aBHMAWsNM3Q4MM

    • Lift up the fan gently with your hands to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
